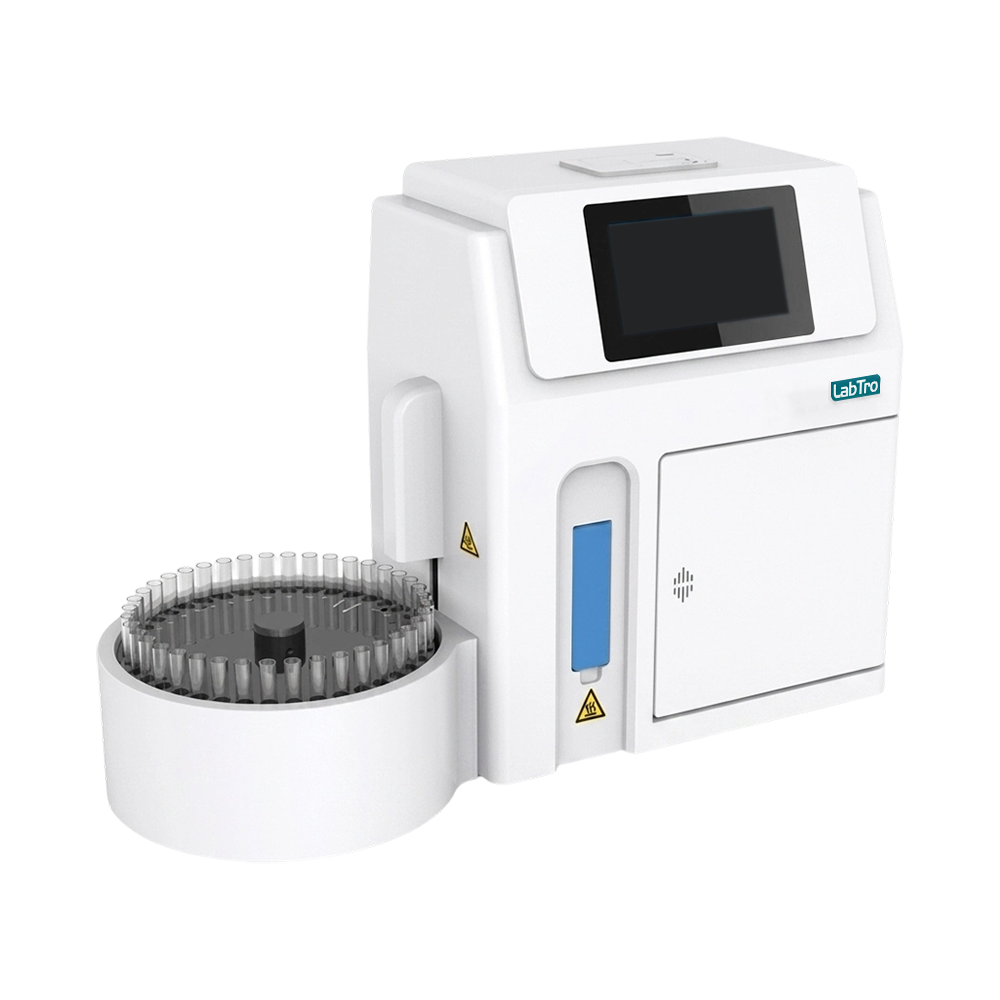

Electrolyte Analyzer LT-EA101

Labtro Electrolyte Analyzer LT-EA101 with ≤25 s measuring speed maintains continuous electrolyte analysis from sample aspiration through ion measurement and result review. Completed measurements move directly into documentation while incoming samples continue through the analytical sequence. Organized sample flow supports routine laboratory processing with efficient daily analytical handling.

Catalog

Qty:

$ 3,220.00

Specifications

Analysis Method Ion Selective Electrode (ISE)
Test Items K⁺, Na⁺, Cl⁻, Ca²⁺, pH, TCO₂, AG
Sample Type Serum, Plasma, Whole Blood, CSF, Diluted Urine
Measuring Speed ≤25 s
Sample Volume 60–150 μL / 200 μL
Sample Positions 30 + 5 Emergency
Injection Mode Manual / Automatic
Storage Capacity Up to 50,000 Results
Printer Built-in Thermal Printer
Interface RS232
Calibration Automatic & Manual
Other Function Sample Volume Detection
Operating Temperature +10°C to +40°C
Relative Humidity ≤80%
Atmospheric Pressure 86–106 kPa
Power 70 VA
Power Supply AC 100–240 V, 50/60 Hz
Dimensions (W × D × H) 682 × 287 × 471 mm
Package Dimensions (W × D × H) 500 × 390 × 720 mm
Net Weight 15.11 kg
Gross Weight 19.31 kg

Features

  • Ion Selective Electrode Technology
  • Rapid Electrolyte Analysis
  • Automatic Calibration
  • Continuous Sample Handling
  • Intelligent Quality Monitoring
  • Integrated Result Management

Application

  • Electrolyte Analysis: Measures ion concentrations.

  • Sample Measurement: Processes incoming samples.

  • Ion Monitoring: Generates analytical values.

  • Routine Testing: Supports continuous workflow.

  • Result Verification: Prepares analytical records.

  • Laboratory Documentation: Organizes test results.
