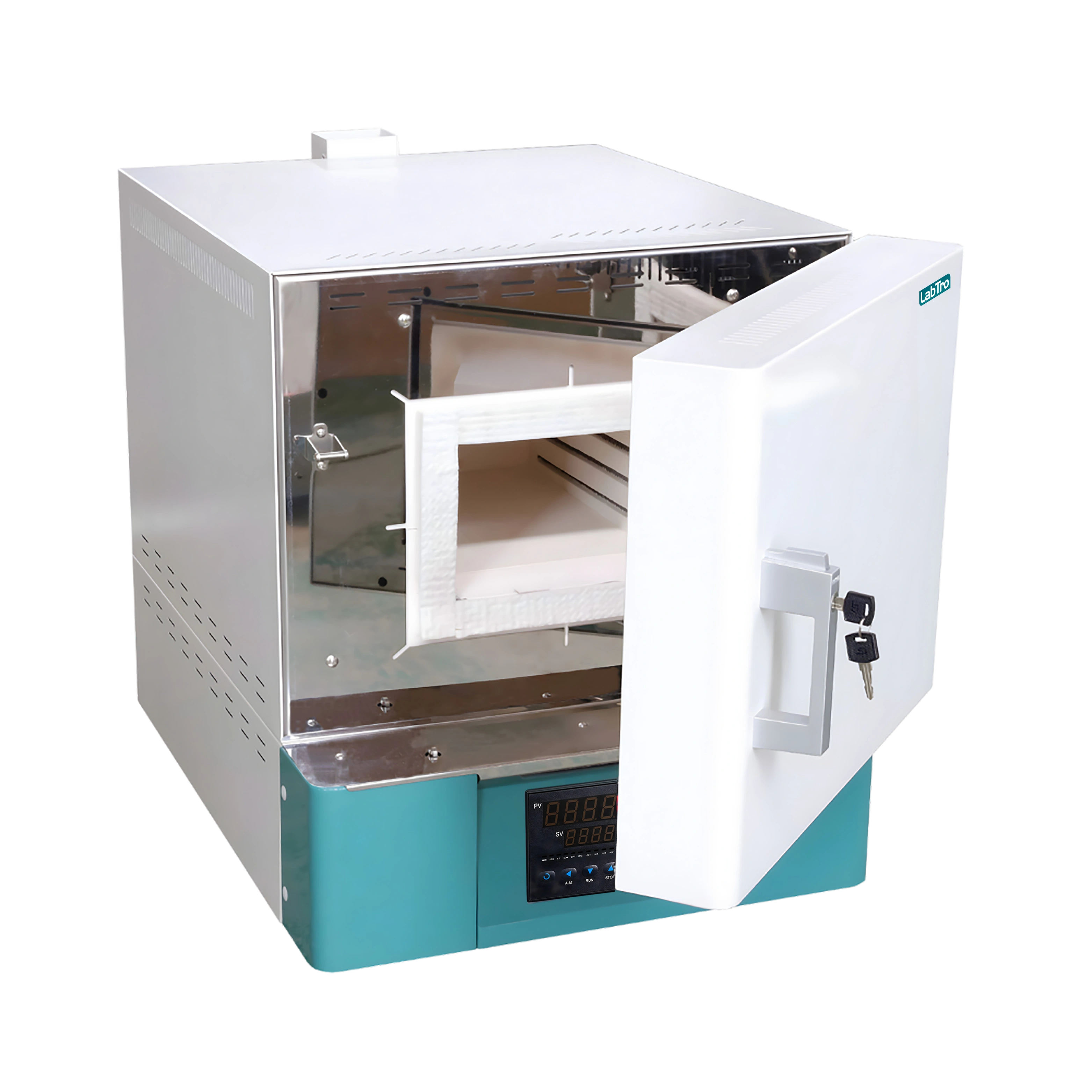

1200°C Muffle Furnace LT-MF403

Name: 1200°C Muffle Furnace LT-MF403
Brand: Labtro Scientific
SKU: LT-MF403
Price: 5610.00 USD
Availability: InStock
Rating: 4.9 (685 reviews)

Product Code: LT-MF403

1200°C Muffle Furnace LT-MF403 operates at a temperature range of 100°C to 1200°C and includes an instantaneous energy consumption calculator. It features automatic parallel pressure door technology, ensuring even inner chamber temperatures without leakage. Equipped with heating elements made from Fe-Cr-Al embedded in bricks. Our 1200°C Muffle Furnace is enhanced with a high-precision microcomputer controller.

Key Features

Polycrystalline mullite fiber furnace

Air sleeve insulation layer

Quartz tube for protection of heating element

Temperature control via k & s thermocouples

User-friendly menu

Cold-rolled steel with electrostatic coating

$ 5,610.00

Qty:

Catalog

Need technical specifications, pricing or application assistance? Contact our product specialists.

Technical Data

Product Specifications

Temperature Range

100 to 1200℃

Temperature Resolution Ratio

1℃

Temperature Motion

±1℃

Temperature Rise Time

30 min to Maximum Temperature

Chamber Material

Ceramic Fiber

Heating Mode

Alloy Wire Heating on Three Sides (Left, Right, Top)

Outer Shell

Cold-Rolled Steel with Electrostatic Spraying; B Model: Stainless Steel

Insulation Layer

Ceramic Fiber

Heater

Alloy Heating Wire

Power Rating

4.5 KW

Exhaust Hole

φ30mm (Chimney Size: 80×60 mm)

Temperature Control Mode

AD1: Domestic Xiamen Yudian Single-Stage Controller

Temperature Setting Mode

Touch Button Setting

Temperature Display Mode

Measuring Temperature: LED Upper Row

Timer

AD1 & AD2: No Timing Function

Operation Function

Fixed Temperature Operation, Timing Function, Auto Stop

Sensor

AD1: Platinum-Rhodium Sensor

Safety Device

Manual Door Security Lock, Over-Temperature Alarm (Sound & Light), Door Opening Electrical Outage, Over-Temperature Protection, Thermocouple Failure Detection

Optional Type

LCD Program Temperature Control Device with USB Data Storage

Volume

12L

Inner Chamber Size (W×L×H)

300×200×200 mm

Exterior Size (W×L×H)

600×360×210 mm

Packing Size (W×L×H)

660×875×850 mm

Power Supply

AC220V

Net Weight

62 Kg

Gross Weight

68 Kg

Performance

Features & Benefits

Polycrystalline mullite fiber furnace
Air sleeve insulation layer
Quartz tube for protection of heating element
Temperature control via k & s thermocouples
User-friendly menu
Cold-rolled steel with electrostatic coating

Laboratory Uses

Applications

1200°C Muffle Furnace LT-MF403 is essential in fusing glass, creating enamel coatings, ceramics, and also suitable for metallurgical applications, ash content determination, and in research centers and medical laboratories to determine the volatile and non-combustible proportion of the sample.
