Biological Microscope LT-BM102

Name: Biological Microscope LT-BM102
Brand: Labtro Scientific
SKU: LT-BM102
Price: 1955.00 USD
Availability: InStock
Rating: 4.9 (839 reviews)

Product Code: LT-BM102

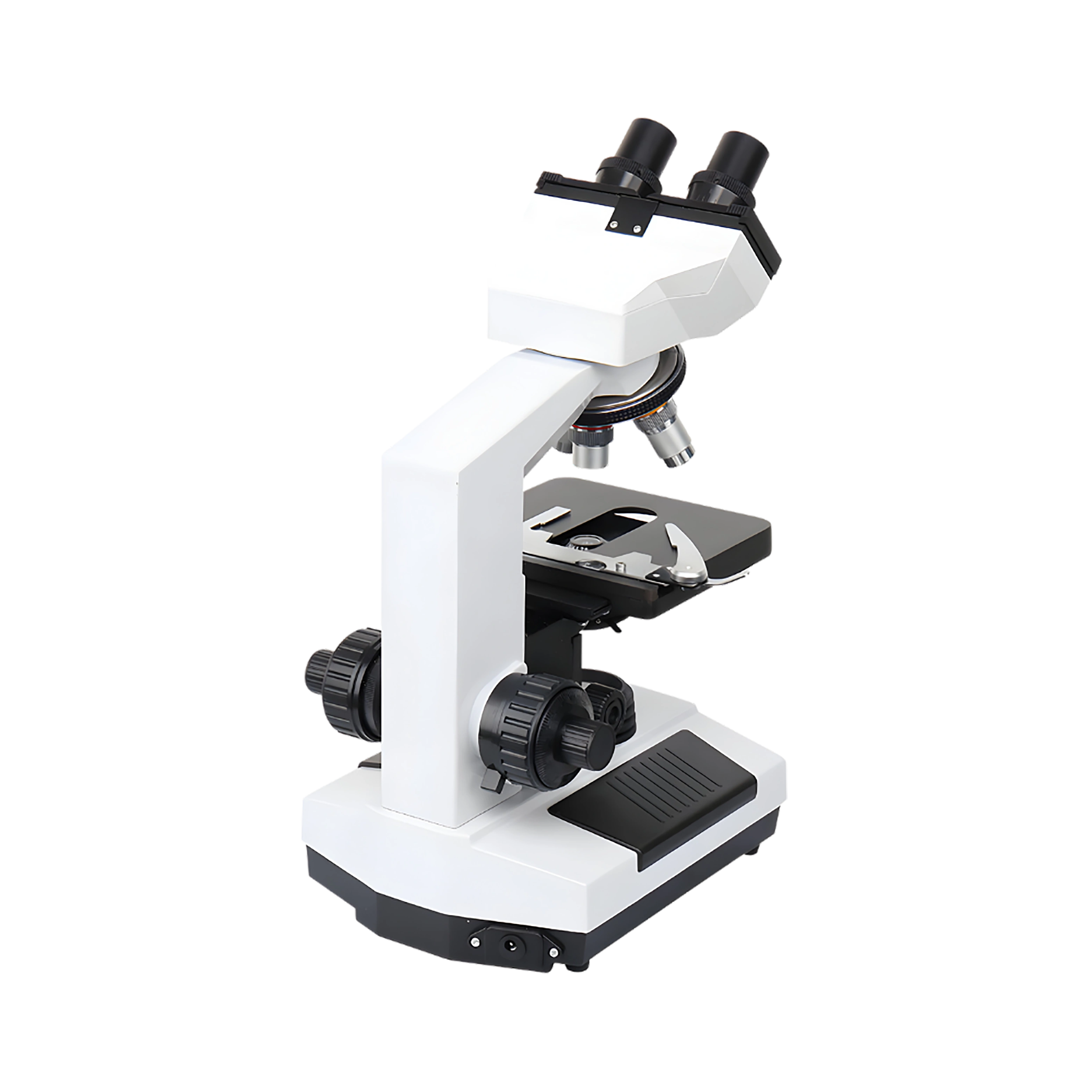

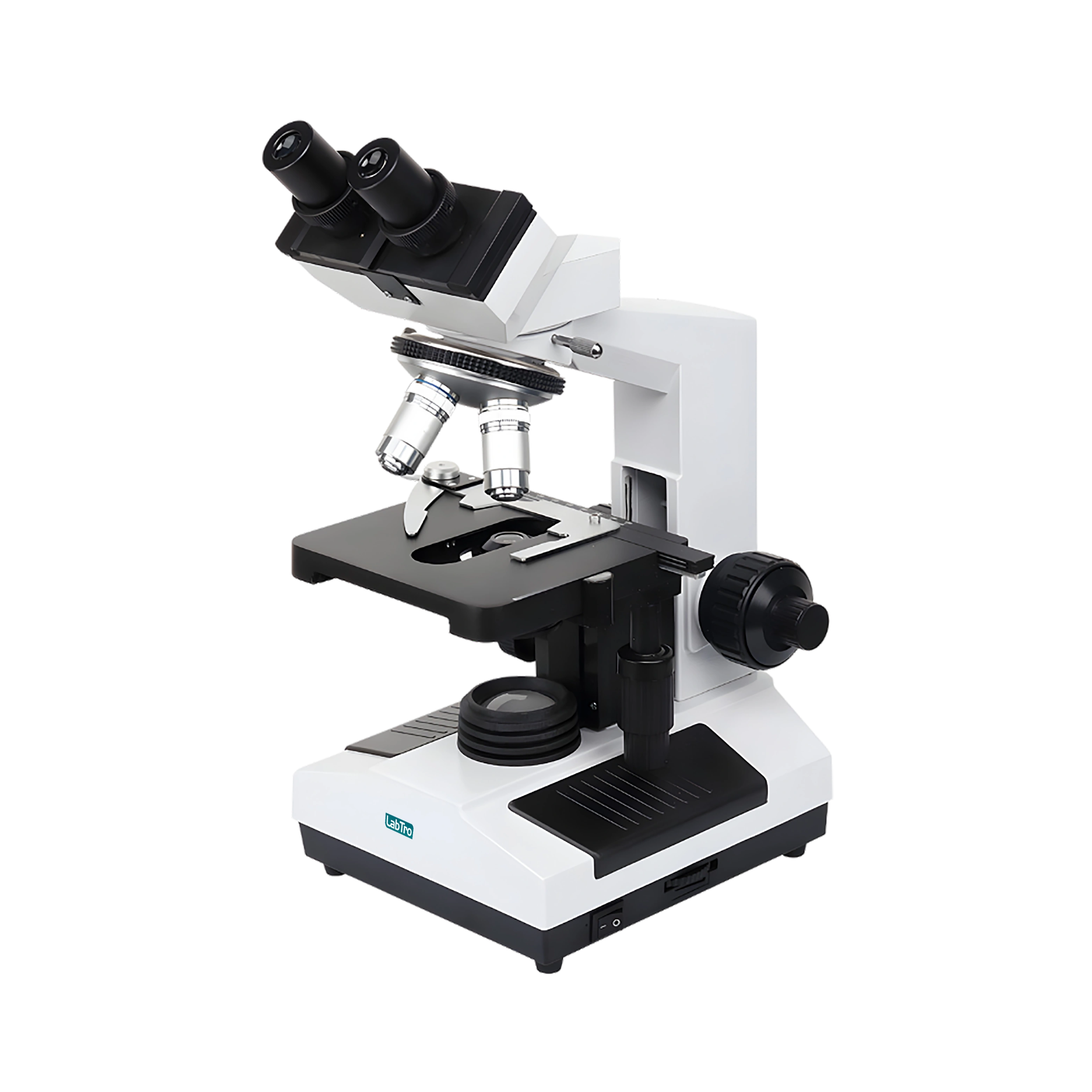

Biological Microscope LT-BM102 is designed with a 30° inclined Siedentop binocular head that rotates 360° for flexible observation. It features a WF10X eyepiece with a pointer for precise specimen identification. Built with a quadruple click-stop nosepiece for quick and easy objective changes. Incorporates coaxial coarse and fine focusing adjustments for fine-tuned precision. Our Biological Microscope offers an optional dark field condenser for enhanced viewing.

Key Features

Achromatic optical system

LED illumination

Adjustable interpupillary distance

Optimal light control

Two-Slide holder

$ 1,955.00

Qty:

Catalog

Need technical specifications, pricing or application assistance? Contact our product specialists.

Technical Data

Product Specifications

Viewing head

Siedentop Binocular Head, 360º Rotation of Eyepiece Tube, 30º Inclined, Interpupillary 48 to 75 mm

Eyepiece

WF10X/18 mm

Nosepiece

Quadruple Nosepiece, Click-stop

Objective

Achromatic objectives

Focusing Mechanism

Coaxial Coarse & Fine Adjustment Knobs

Focusing Range

Moving Range 30mm, Focusing Interval 0.002mm

Condenser

1.25 N. A

Condenser Type

Abbe Type Condenser with Iris Diaphragm

Illumination

LED light, Brightness Adjustable

Working stage type

Double Layer Mechanical Stage, Two-slide Holder

Power Consumption

5 Watt

Power Supply

Working stage Dimension

140 × 132 mm / 75 × 45 mm

Performance

Features & Benefits

Achromatic optical system
LED illumination
Adjustable interpupillary distance
Optimal light control
Two-Slide holder

Laboratory Uses

Applications

Biological Microscope LT-BM102 is utilized for advanced research across laboratories, scientific institutions, medical centers, health clinics, and biochemical research facilities.
