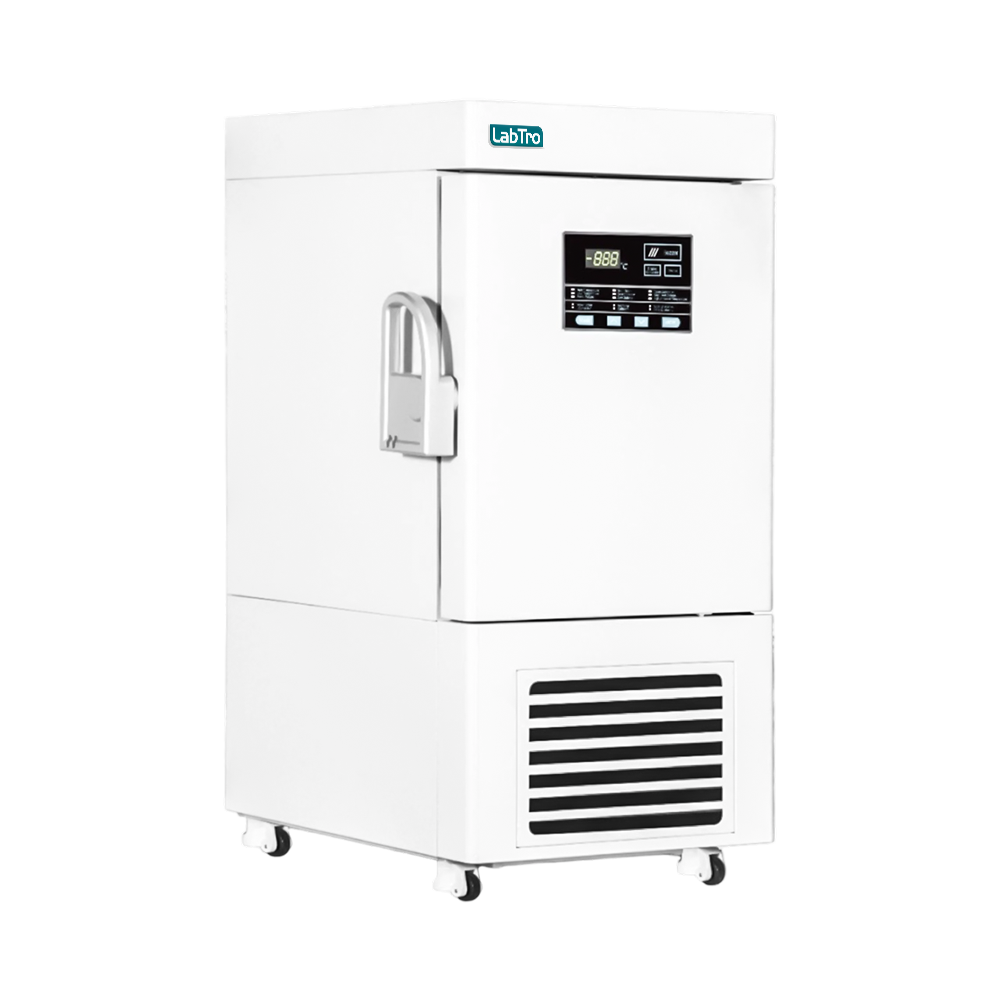

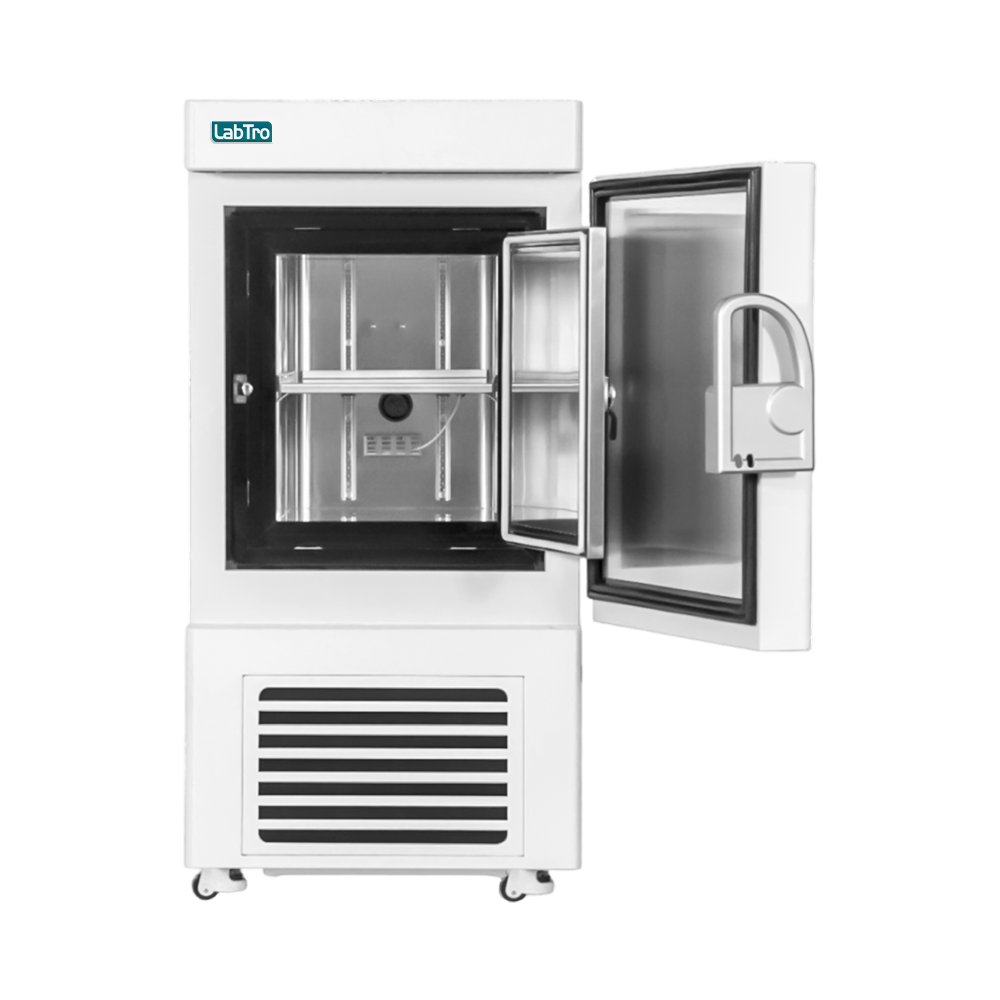

-86°C Ultra-Low Vertical Freezer LT-UF201

-86°C Ultra-Low Vertical Freezer LT-UF201 with Capacity up to 58 L supports bulk ultra-low storage with consistent temperature hold. Auto-cascade cooling enables fast pull-down and stable recovery during frequent access cycles. VIP insulation with multi-layer sealing maintains uniform internal conditions and reduces temperature variation. An LED control panel with alarms enables continuous monitoring and precise control. Used to preserve materials at ultra-low temperature for structured storage and stable handling

Catalog

Qty:

$ 3,520.00

Specifications

Capacity 58 L
Temperature Range -40 to -86℃
Cooling System Auto Cascade
Sensor PTC 100
Refrigerant R4001 (Mixed, CFC-Free)
Controller Microprocessor
Display LED Digital
Insulation PURF (0.005 W/m·K)
Control Remote Access
Sample Capacity ~2,400 samples
Inner Doors Detachable SS
Shelves/Racks 2 (6×2) Adjustable
Boxes 2 inch 24
Sealing Multi-layer Silicone Gasket
Exterior Material Anti-bacterial Coated Steel
Mobility Heavy-duty Castors
Interface USB, RS232/485
Access Port Yes
Noise (db) 50
Current 3.18 A
Power Consumption 6.09 Wh/24h
Power 442 W
Internal Dimensions (W×D×H) 330×453×410
Power Supply 220 V/50Hz-60Hz
External Dimensions (W×D×H) 635×757×1212
Packaging Dimensions (W×D×H) 730×860×1420
Net Weight 112 kg
Gross Weight 146 kg

Features

  • Auto-cascade cooling for fast pull-down.
  • VIP insulation at 0.005 W/m·K.
  • Multi-layer door sealing for stability.
  • LED control panel for monitoring.
  • Audible and visual alarms.
  • Anti-corrosion interior finish.

Application

  • Long-term Storage: Maintains ultra-low temperature for extended preservation.

  • Sample Protection: Supports stable conditions for material integrity.

  • Bulk Storage: Organises high-volume material placement.

  • Temperature Control: Maintains consistent internal conditions.

  • Secure Handling: Supports controlled access and placement.
