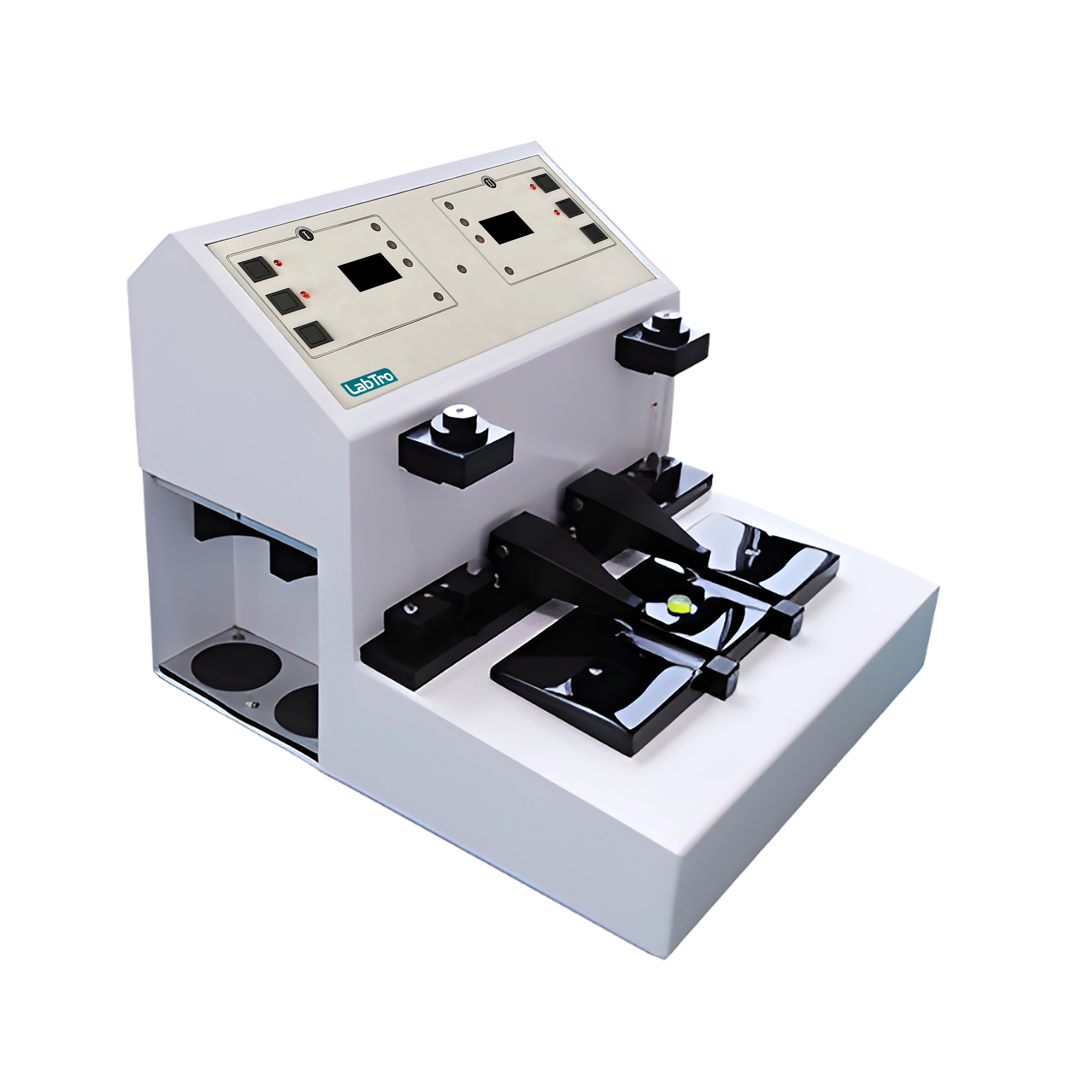

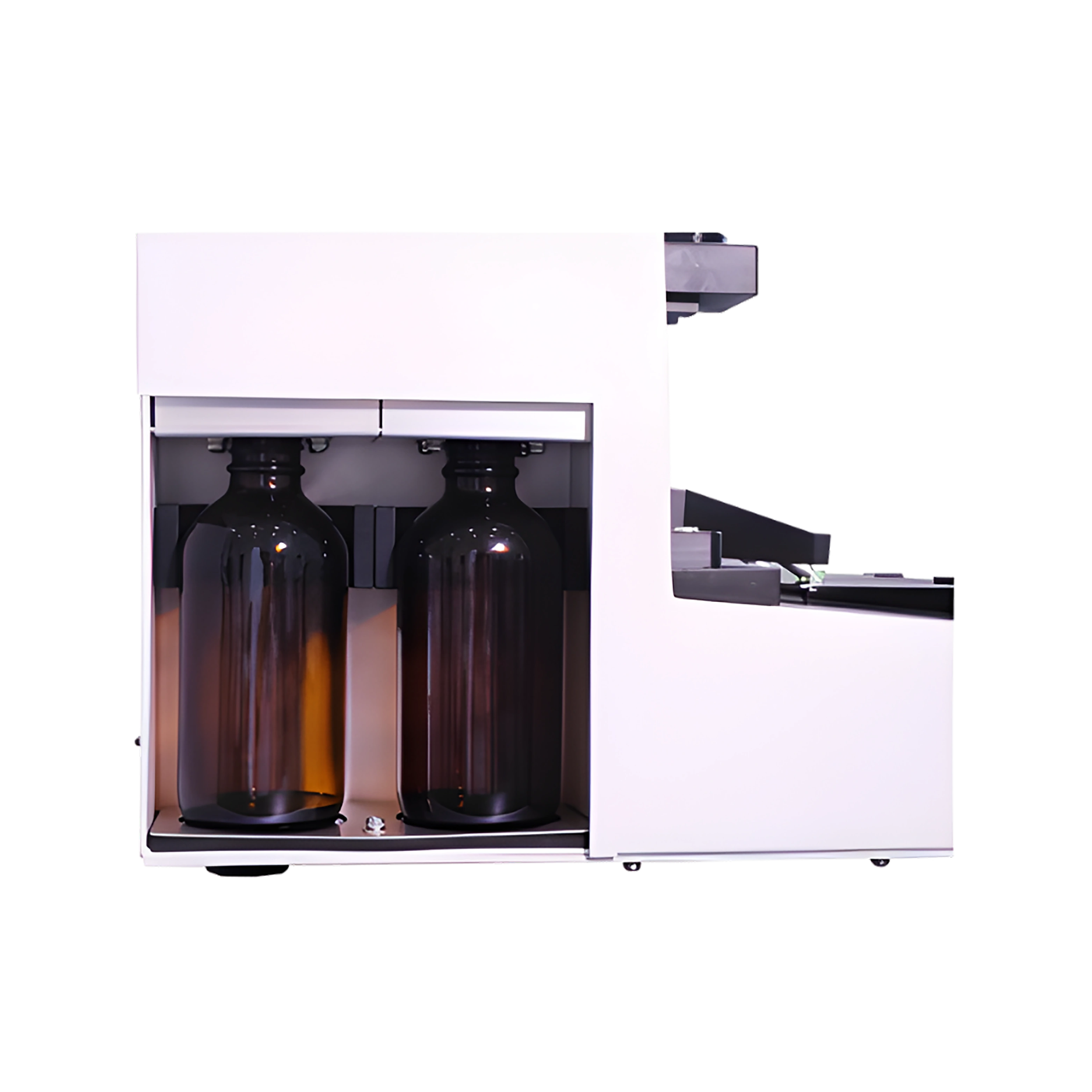

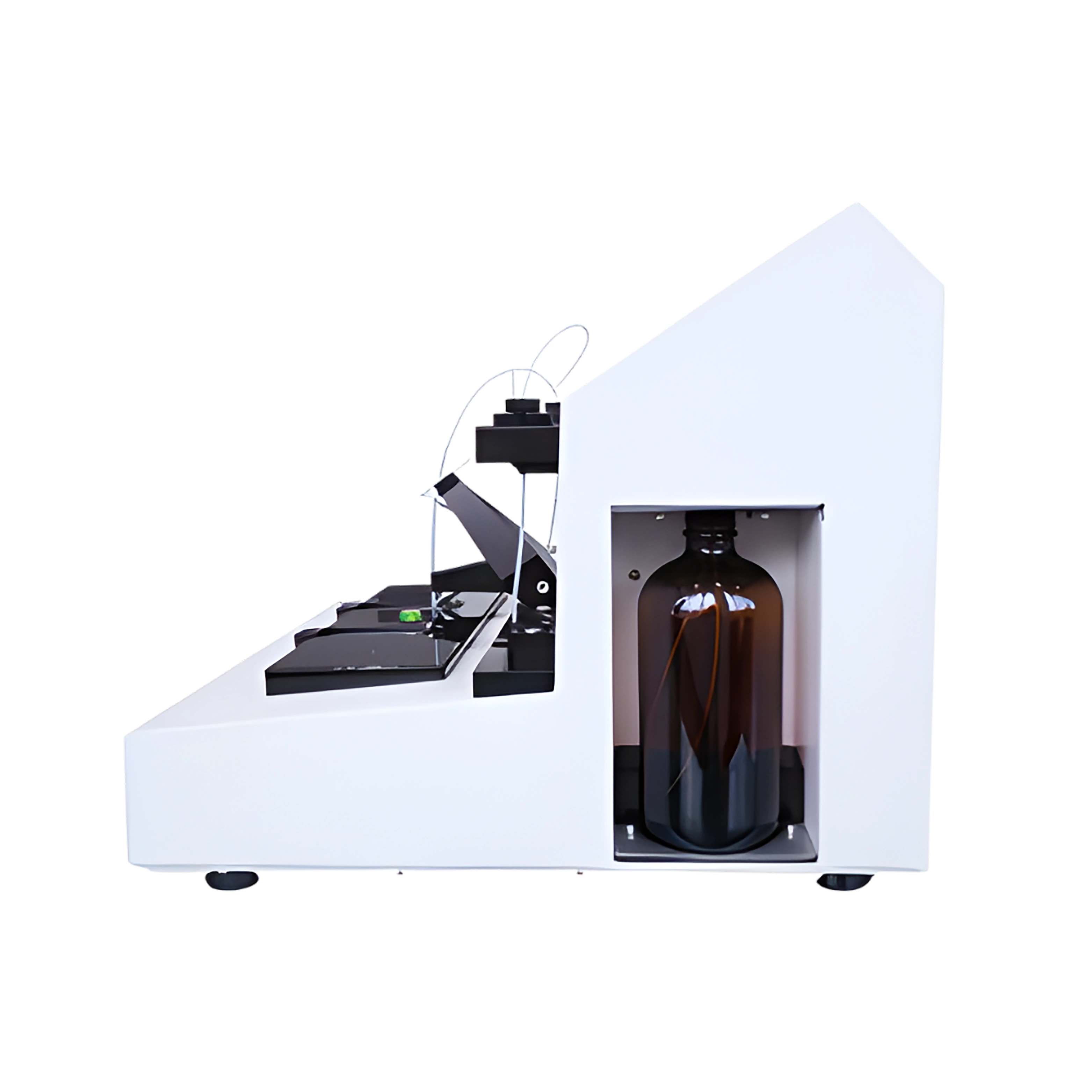

Analytical Ferrograph LT-AFG101

Name: Analytical Ferrograph LT-AFG101
Brand: Labtro Scientific
SKU: LT-AFG101
Price: 13860.00 USD
Availability: InStock
Rating: 4.9 (733 reviews)

Product Code: LT-AFG101

Analytical Ferrograph LT-AFG101 offers a wear particle measurement range from 0μm to 800μm, enabling reliable prediction of wear and potential lubricant failure. With a 220 V power supply, it generates a magnetic flux density of up to 1.5 T, ensuring smooth particle separation. Features both automatic and manual options for easy, hassle-free maintenance. Equipped w ith OLED display provides immediate results and live testing updates. This Ferrograph is widely used across industries, including transportation, iron and steel, electric power, and naval defense.

Key Features

Precise analysis with graphical representation

Reduced solvent usage

Compact and space-efficient design

Computer connectivity enabled

Easy-to-use design

$ 13,860.00

Qty:

Catalog

Need technical specifications, pricing or application assistance? Contact our product specialists.

Technical Data

Product Specifications

Wear particle measurement range

0μm to 800μm

Injection method

Micro pump pressure type
automatic sampling

Cleaning method

Automatic cleaning and manual cleaning two ways

Magnetic field

Maximum magnetic flux density 1.5T (±0.1T)
Maximum magnetic field gradient less than 0.5T/mm

Spectrum-making channel

Dual-channel synchronous spectroscopy

Plate inclination

1° to 5°

Oil sample transfer speed

10 to 30 ml/h

Cleaning agent flow rate

10 to 30 ml/h

Measurement resolution

1μm

Sample size for a single analysis

1ml

Oil delivery pipe size

Outer diameter 2.6 mm
inner diameter 1.8 mm

Ferrographic substrate size

60 × 24 × 0.17mm

Display

1.54 inch OLED display

Dimension

395 × 355 × 335 mm

Weight

14kg

Performance

Features & Benefits

Precise analysis with graphical representation
Reduced solvent usage
Compact and space-efficient design
Computer connectivity enabled
Easy-to-use design

Laboratory Uses

Applications

Analytical Ferrograph LT-AFG101 is widely used across various industries, including transportation, iron and steel, electric power, and naval defence.
