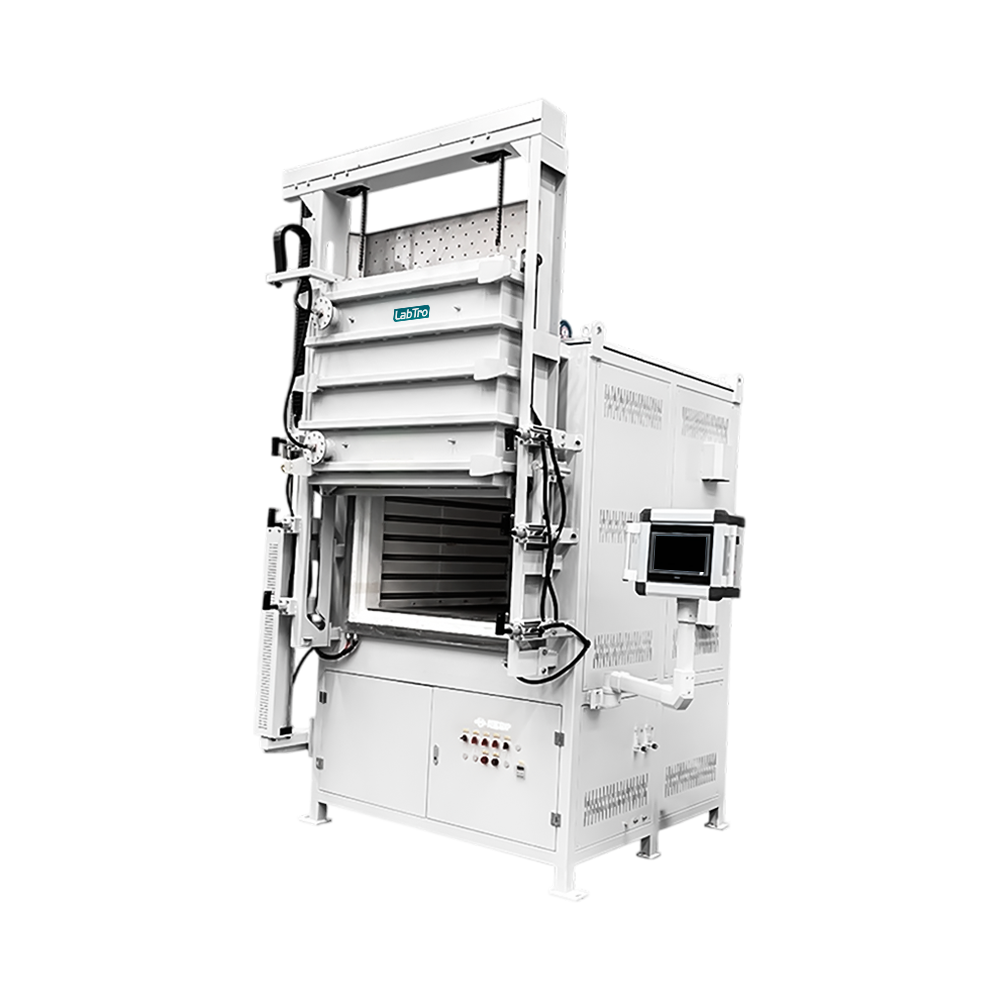

Atmosphere Furnace LT-AF101

Name: Atmosphere Furnace LT-AF101
Brand: Labtro Scientific
SKU: LT-AF101
Price: 10098.00 USD
Availability: InStock
Rating: 4.9 (860 reviews)

Product Code: LT-AF101

Atmosphere Furnace LT-AF101 delivers high-temperature performance up to 1700 °C, with a maximum working temperature of 1600 °C. It features a horizontal chamber design that promotes uniform heat distribution, combined with ceramic fiber insulation and MoSi₂ heating elements to support stable high-temperature operation. Equipped with a full touch-screen interface. Offers clear data visualization and allows process data to be exported in table format for analysis. Our atmosphere furnace is used in laboratories, research centres, and industrial facilities working with metals, ceramics, electronics, and advanced materials.

Key Features

Carbon steel outer shell

Ceramic fiber–lined chamber

30-step programmable

PID automatic controller

Full touch-screen operation

Clear data display

Table export for analysis

Current and voltage meters

Real-time power monitoring

Compact cabinet design

Audible and visual alarms

$ 10,098.00

Qty:

Catalog

Need technical specifications, pricing or application assistance? Contact our product specialists.

Technical Data

Product Specifications

Maximum Temperature

1700°C

Maximum Working Temperature

1600 °C

Heating Rate

0 to 20°C/min Suggest ≤10°C/min

Heating Program

16 temperature curves, 30 programmable steps

Temperature Control Accuracy

±1°C

Number of Heating Elements

8 pieces

Thermocouple Type

B type

Flow Meter

1L/Min

Height with Door Open

2050 mm

Inlet Gas Type

Nitrogen or Argon (N2 or Ar)

Display

7-inch LCD touch screen

Power

440 V, 50 Hz, three phase

Chamber Dimensions

300 × 300 × 300 mm

Dimensions

1100 × 2050 × 1100 mm

Packaging Dimensions

1300×2250×1300mm

Net Weight

500kg

Gross Weight

567kg

Performance

Features & Benefits

Carbon steel outer shell
Ceramic fiber–lined chamber
30-step programmable
PID automatic controller
Full touch-screen operation
Clear data display
Table export for analysis
Current and voltage meters
Real-time power monitoring
Compact cabinet design
Audible and visual alarms

Laboratory Uses

Applications

Atmosphere Furnace is used for heat treatment, sintering, annealing, and material testing under controlled gas environments such as nitrogen or argon. It is suitable for laboratories, research centres, and industrial facilities working with metals, ceramics, electronic components, and advanced materials, where oxidation control and stable high-temperature processing are required.

Add-ons

Optional Accessories

Gooch Filter Crucible
Cupel
Heating Element
Door Insulation
