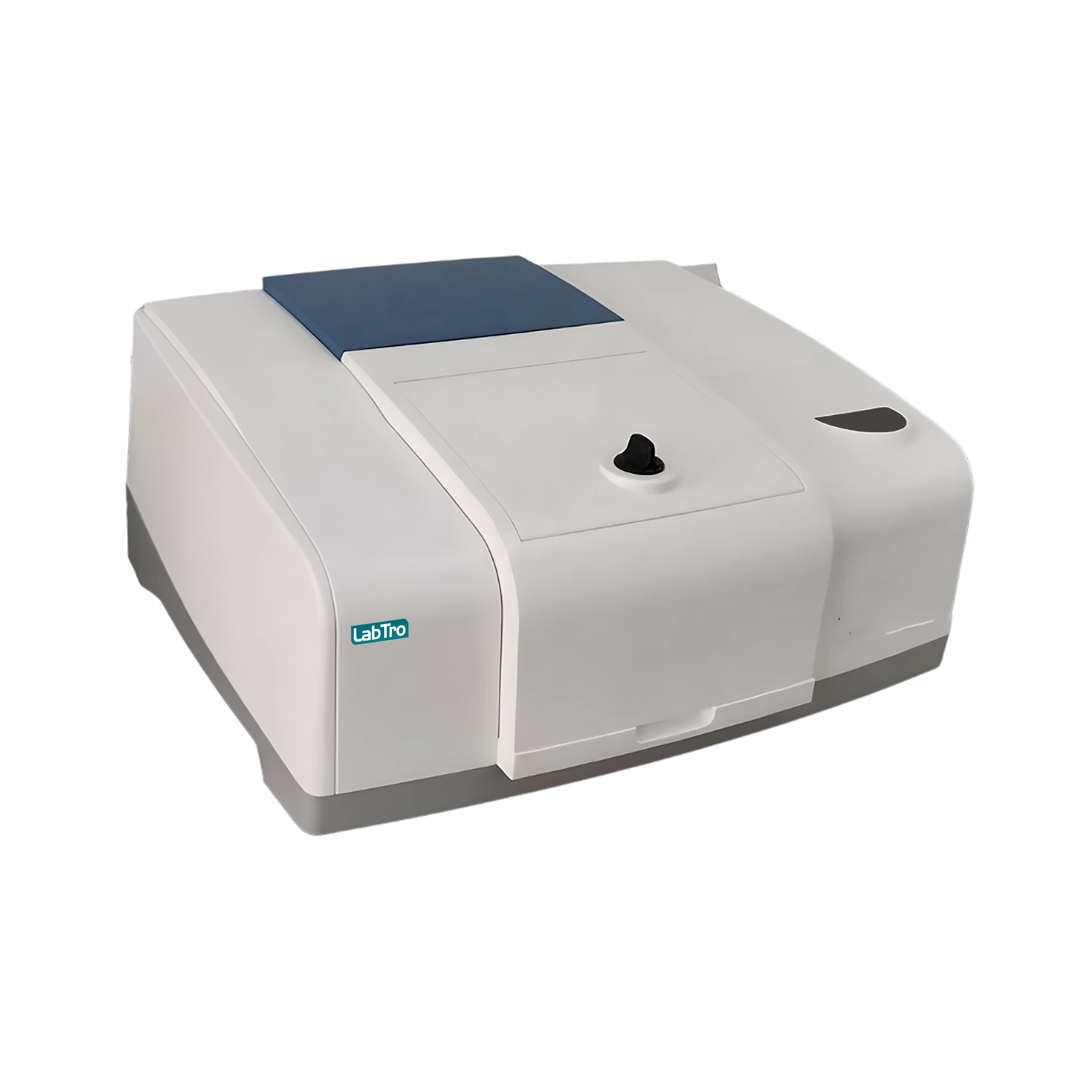

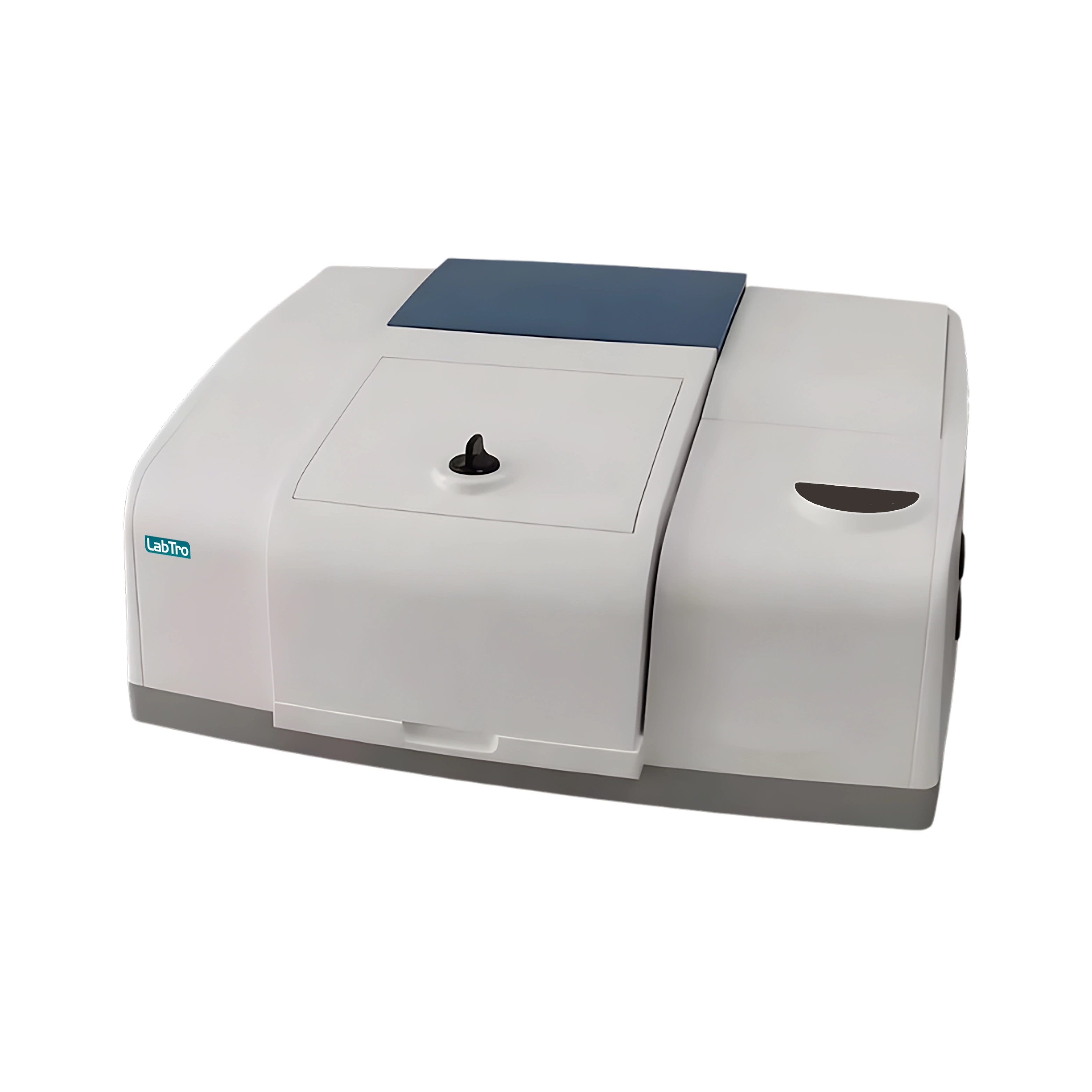

FTIR Spectrometer LT-FS101

Name: FTIR Spectrometer LT-FS101
Brand: Labtro Scientific
SKU: LT-FS101
Price: 18920.00 USD
Availability: InStock
Rating: 4.9 (760 reviews)

Product Code: LT-FS101

Labtro FTIR Spectrometer LT-FS101 directs infrared radiation from its long-life air-cooled IR source into an interferometer containing a coated KBr beamsplitter and precision movable mirror. The beamsplitter divides the infrared beam into separate optical paths, and the returning beams recombine to form an interference signal containing information from many infrared wavelengths simultaneously. This modulated IR beam then interacts with the sample, where specific molecular bonds absorb characteristic frequencies according to their vibrational modes. The high-resolution detector records the resulting interferogram, while the 24-bit, 500 MHz A/D system converts it into digital data. The connected PC applies a Fourier Transform to convert the interferogram into an infrared spectrum showing absorbance or transmittance versus wavenumber. The resulting spectrum can then be used to identify functional groups, compare samples with reference spectra, and characterize material composition. The internal dynamic collimation and precision mirror-drive system help maintain optical alignment during scanning, while the desiccant protects the moisture-sensitive optical components.

Key Features

High-Stability Optical Bench

Integrates major optical components on a cast-aluminium platform to reduce alignment requirements and improve scan repeatability.

Dynamic Interferometer Collimation

Maintains the interferometer in an optimized optical condition during measurement.

Precision Mirror Drive System

Uses a voice-coil driver and precision slide for stable scanning under laboratory operating conditions.

High Signal-to-Noise Performance

Provides >50,000:1 signal-to-noise ratio and RMS performance up to 250,000:1.

Wide Infrared Measurement Range

Covers 7800 to 350 cm⁻¹ for broad material characterization.

Moisture-Protected Optics

Integrated desiccant helps protect the KBr beamsplitter and other optical components from humidity.

High-Speed Digital Processing

Incorporates a 24-bit A/D converter operating at 500 MHz.

PC-Based Operation

Supports spectrum acquisition and analytical processing through connected computer software.

USB 2.0 Connectivity

Enables direct communication between the spectrometer and computer.

User-Replaceable Components

Certain system components can be replaced by the user, helping reduce maintenance downtime.

$ 18,920.00

Qty:

Catalog

Need technical specifications, pricing or application assistance? Contact our product specialists.

Technical Data

Product Specifications

Wave Range

7800 to 350 cm⁻¹

Resolution

Superior to 0.9 cm⁻¹

Signal-to-Noise Ratio

>50,000:1 at 4 cm⁻¹ resolution, sample and background scan for 1 min at 2100 cm⁻¹

RMS Signal-to-Noise Ratio

250,000:1

Detector

High-Resolution Detector

Beamsplitter

Coated KBr

Infrared Light Source

Long-Life, Air-Cooled IR Light Source

Optical Bench

Precision-Machined Cast Aluminium

Optical Configuration

Integrated High-Stability Optical System

Interferometer Control

Internal Dynamic Collimation

Mirror Drive

Voice-Coil Driver with Precision Slide

Optical Moisture Protection

Internal Desiccant Container

Electronic System

24-bit A/D Converter

A/D Operating Frequency

500 MHz

Computer Interface

USB 2.0

Operation

PC-Controlled

Main Power

110 to 220 V AC, 50 to 60 Hz

Operating Ambient Temperature

16 to 25°C

Operating Relative Humidity

20 to 50% RH

Operating-Site Power Requirement*

AC 100 to 240 V, 47 to 63 Hz, 1.2 A, grounded

Gross Weight

15 kg

Performance

Features & Benefits

- High-Stability Optical Bench
- Integrates major optical components on a cast-aluminium platform to reduce alignment requirements and improve scan repeatability.
- Dynamic Interferometer Collimation
- Maintains the interferometer in an optimized optical condition during measurement.
- Precision Mirror Drive System
- Uses a voice-coil driver and precision slide for stable scanning under laboratory operating conditions.
- High Signal-to-Noise Performance
- Provides >50,000:1 signal-to-noise ratio and RMS performance up to 250,000:1.
- Wide Infrared Measurement Range
- Covers 7800 to 350 cm⁻¹ for broad material characterization.
- Moisture-Protected Optics
- Integrated desiccant helps protect the KBr beamsplitter and other optical components from humidity.
- High-Speed Digital Processing
- Incorporates a 24-bit A/D converter operating at 500 MHz.
- PC-Based Operation
- Supports spectrum acquisition and analytical processing through connected computer software.
- USB 2.0 Connectivity
- Enables direct communication between the spectrometer and computer.
- User-Replaceable Components
- Certain system components can be replaced by the user, helping reduce maintenance downtime.

Laboratory Uses

Applications

Pharmaceutical Analysis — Identification and qualitative characterization of raw materials and pharmaceutical samples.

Petroleum Analysis — Infrared characterization of petroleum-related materials and products.

Chemical Analysis — Structural and qualitative assessment of organic and chemical compounds.

Polymer Analysis — Suitable with ATR accessory for plastics, rubbers and other polymer materials.

Film and Coating Analysis — Analysis of films, paint chips and coatings on glass or metallic surfaces.

Fiber Analysis — Qualitative infrared examination of fibrous samples.

Liquid Sample Analysis — Measurement of small quantities of liquid samples, including oils and ethanol-type samples.

Routine Research and Quality Control — Material identification and comparative spectral analysis in laboratory workflows

Included

Standard Accessories

Standard Accessory	Quantity
FTIR Spectrometer	1
Power Supply	1
Dust Cover	1
USB Cable	1
Power Cord	1
Screwdriver, 150 × 6 mm	1
Allen Wrench, 2.5 mm	1
Replacement Desiccant	1
Polystyrene Film	1
Software CD	1
User Manual	1 Copy

Add-ons

Optional Accessories

Diamond ATR Accessory
Provides direct FTIR measurement of solids, polymers, rubbers, fibers, films, coatings and small-volume liquid samples with reduced sample preparation. The pure diamond crystal offers durability for routine qualitative infrared analysis.
