Gradient Thermal Cycler LT-GTC101

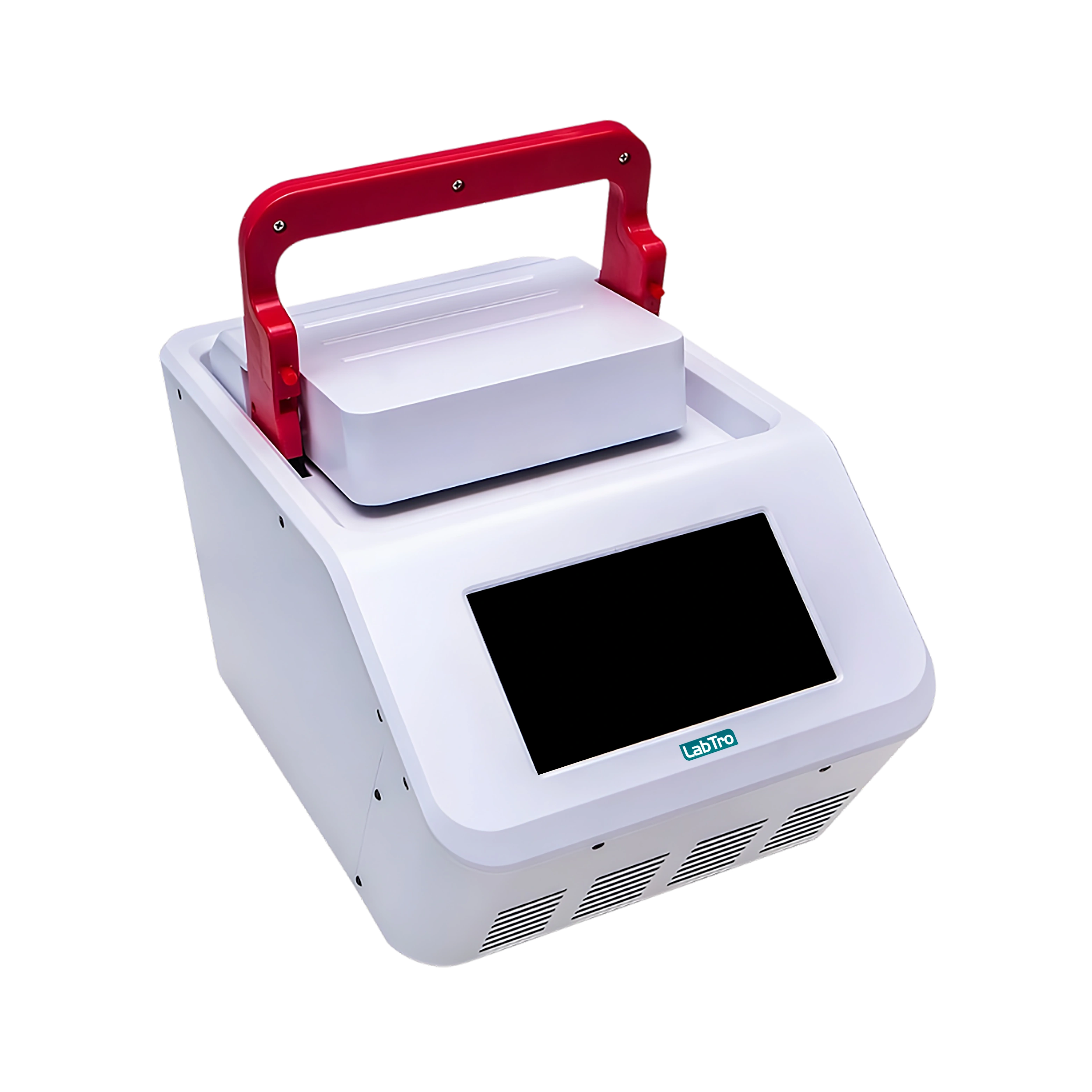

Gradient Thermal Cycler LT-GTC101 is designed to accommodate a sample capacity of 96 wells, specifically compatible with 0.2 mL test tubes. It features a special protective shell that shields against electromagnetic radiation. Incorporates a filter-stabilized power supply for consistent power delivery. Equipped with a gland-type hot lid for efficient sealing and uniform heating.  Our Gradient Thermal Cycler also facilitates USB data transfer functionality.

Catalog

Qty:

$ 3,757.00

Specifications

Sample Capacity 96 × 0.2ml test tube, 0.2 ml PCR 8 strips tubes, or 1 × 96 well plate
Temperature Range (Sample Block) 0℃ to 105℃
Maximum Heating Range 6℃ / sec
Maximum Cooling Rate 6℃ / sec
Temperature Uniformity ≤±0.1℃
Temperature Accuracy ≤±0.1℃
Temperature Display Resolution 0.1℃
Variable Temperature Range 0.1℃ to 4℃
Gradient Accuracy ±0.1℃
Gradient Uniformity ≤±0.2℃
Gradient Temperature Range 30℃ to 100℃
Max Gradient Difference Up to 40℃
Gradient Column Distribution 12 columns
Program Storage Capacity Up to 15,000 Programs
Communication Interface USB
Display 7-inch capacitive touch screen, compatible with gloves
Power Consumption 700 Watt
Dimensions 260 × 410 × 240 mm
Weight 6.9 kg

Features

  • Advanced gradient control system
  • High-resolution touch screen
  • Arc-shaped module bottom
  • Uniform cooling function
  • Intuitive GUI with large memory
  • Space-saving airflow design

Application

  • Gradient Thermal Cycler LT-GTC101 is used in research, diagnostic, forensic, environmental, and food safety labs for DNA amplification, gene analysis, mutation detection, and pathogen identification.
