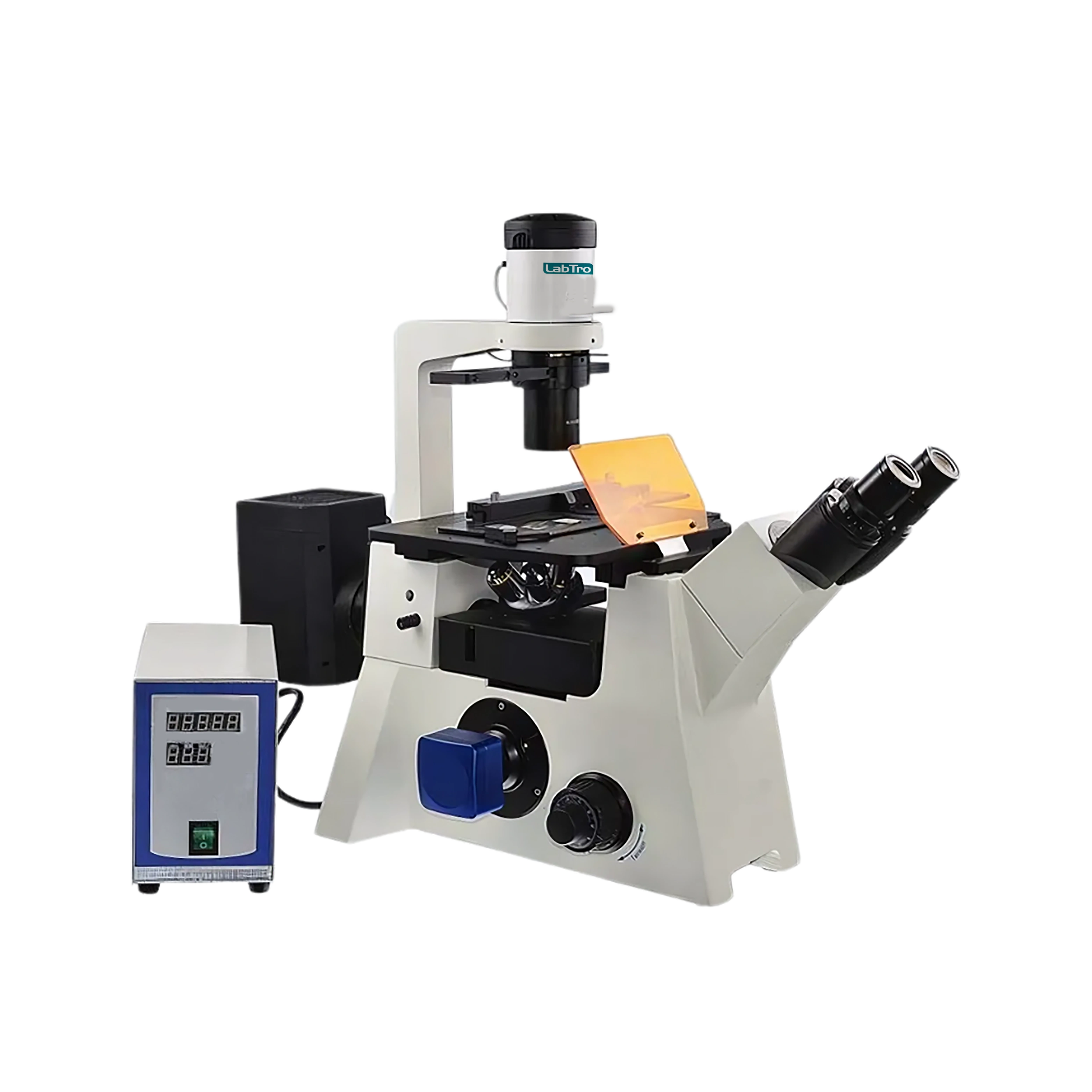

Inverted Fluorescence Microscope LT-IFM101

Name: Inverted Fluorescence Microscope LT-IFM101
Brand: Labtro Scientific
SKU: LT-IFM101
Price: 6050.00 USD
Availability: InStock
Rating: 4.8 (661 reviews)

Product Code: LT-IFM101

Inverted Fluorescence Microscope LT-IFM101 has a binocular viewing tube with an adjustable interpupillary distance, ensuring precise observations. It is integrated with high-resolution optical components to enhance image clarity. Equipped with high-sensitivity fluorescence filters, it improves signal detection. Designed with an ergonomic structure, it ensures smooth operation. Our Inverted Fluorescence Microscope is ideal for medical diagnostics and fluorescence-based research.

Key Features

Infinity optical system

LED illumination

Coaxial coarse and fine focusing mechanism

Anti-reflective coated optics

Digital camera compatibility

High-stability frame

$ 6,050.00

Qty:

Catalog

Need technical specifications, pricing or application assistance? Contact our product specialists.

Technical Data

Product Specifications

Viewing Head

Binocular Viewing Tube, Interpupillary distance 52 to 75 mm, 45° inclined, dioptre adjustable

Optical System

Infinite Optical System

Light Distribution

6V 30W Halogen Lamp House, 6V 30W Osram Halogen Bulb, Electrics for 6V 30W Halogen 250V/3.15A Φ5 × 20 Fuse

Eyepiece

WF10X/20 mm Plan Eyepiece, High eye-point up to 21 mm, Centering Telescope

Objective

10X, 20X, 40X Infinity Long Working Distance (WD) Plan Objectives and 20X Infinity Plan Phase-Contrast Positive Objective

Stage

Fixed Stage, size 240 mm × 260 mm, movement range: 135 mm × 85 mm, with low-positioned X/Y coaxial control knob. Drop specimen holder (φ110), Specimen holder (76 × 26, φ54)

Nosepiece

Quintuple Revolving Nosepiece

Condenser

Ultra-long WD Condenser, N.A. 0.3

PH Slide

Special Slide for Phase-Contrast and Bright Field Viewing (10X, 20X, 40X)

Filter

Blue filter (φ34), Green filter (φ34), Yellow filter (φ34)

EPI Fluorescent Attachment Kits

Excitation: B & G Excitation filter

Performance

Features & Benefits

Infinity optical system
LED illumination
Coaxial coarse and fine focusing mechanism
Anti-reflective coated optics
Digital camera compatibility
High-stability frame

Laboratory Uses

Applications

Inverted Fluorescence Microscope LT-IFM101 is ideal for fluorescence imaging in cell biology, microbiology, and clinical diagnostics, and it supports research in live cell imaging, protein localization, and molecular biology studies.
