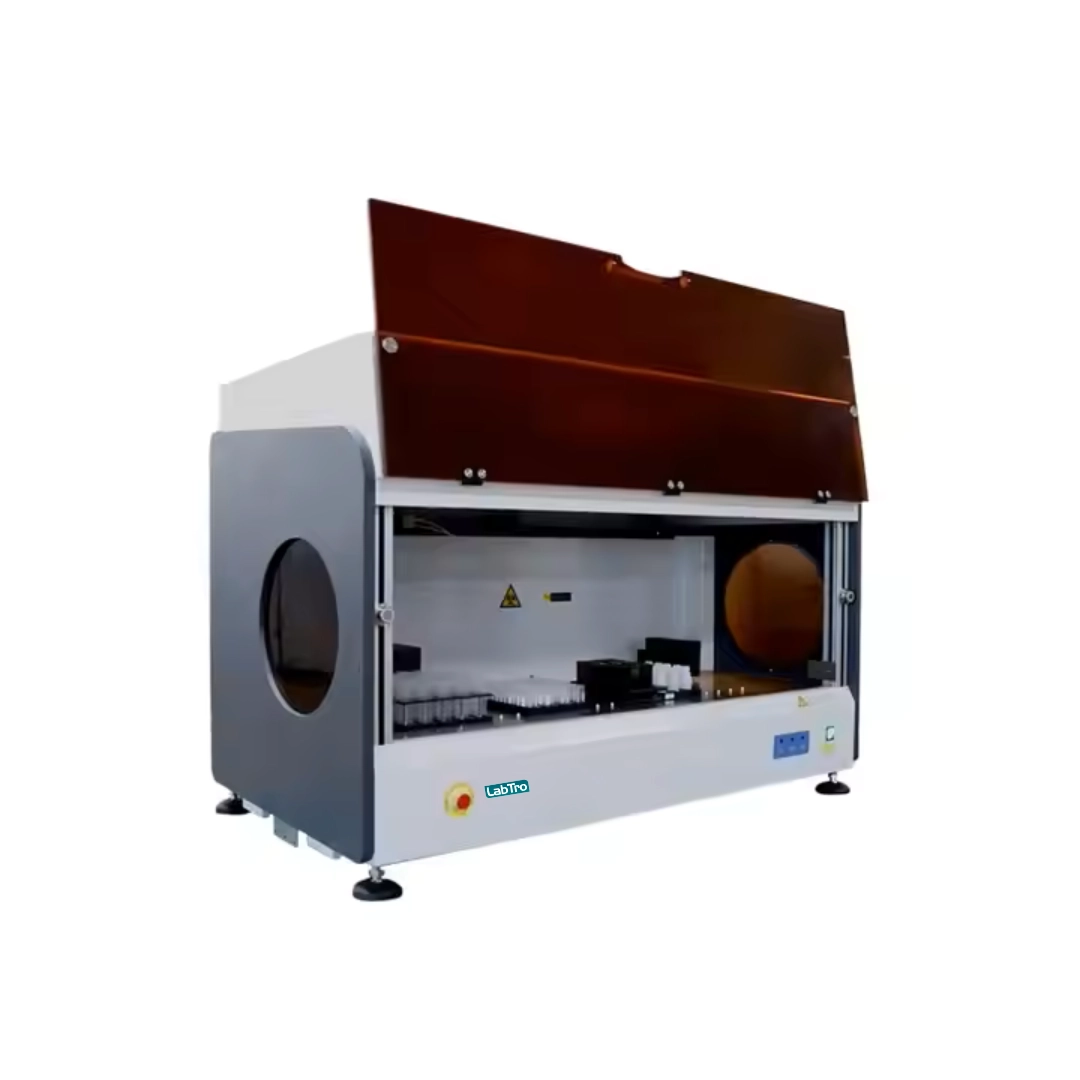

Microplate Reader and Washer LT-MRW102

Name: Microplate Reader and Washer LT-MRW102
Brand: Labtro Scientific
SKU: LT-MRW102
Price: 19305.00 USD
Availability: InStock
Rating: 4.9 (702 reviews)

Product Code: LT-MRW102

Microplate Reader and Washer LT-MRW102 is a fully automated system with 192 standard sample positions for high-throughput ELISA testing. It handles sample preparation, pipetting, incubation, washing, and absorbance reading with precision. Equipped with an integrated microplate reader and washing system for accurate and contamination-free results. Our Microplate Reader and Washer have advanced software and LIS support to enhance efficiency in clinical and research laboratories.

Key Features

Automated pipetting system

Dual aspirating and dispensing probes

Advanced reagent management

Efficient microplate washing

Integrated microplate reader

Precise incubation and temperature control

User-friendly software

$ 19,305.00

Qty:

Catalog

Need technical specifications, pricing or application assistance? Contact our product specialists.

Technical Data

Product Specifications

Sample Racks

Standard 192 sample positions (expandable, up to 552)

Pipetting

10 to 1000μl

Dispensing System

2 aspirating and dispensing probes

Reagent Position

23 reagent racks, editable

Pipetting Range

10 to 1000μl, 1μl stepping

Pipetting Precision

(100μl) CV ≤ 0.5%

Dispensing Time

4 minutes to whole 96-well microplates

Washing Probes

Two-line 8-nozzle manifolds

Wash Containers

Cleaning fluid (15L), waste water (25L), Buffer 1 (5L), Buffer 2 (2L), Buffer 3 (2L), Buffer 4 (2L), with liquid level-sensing, liquid shortage, and full alarm

Waste Containers

25L with waste full sensor

Washing Residual

< 2μl

Reading Channels

8 independent photometric channels, mono and dichromatic reading

Absorbance

0.0 to 3.0 OD

Spectral Range

400 to 700nm

Optical Filters

2 standard filters (450, 630nm); 2 more on request (405nm/450nm/492nm/630nm)

Reading Accuracy

±1% from 0.1–1.500, ±2% from 1.5–3.0 OD

Incubators

4 independent units

Temperature Range

RT to 45℃

Temperature Accuracy

±0.5℃

Software System

Above Windows 7 system

LIS System

Bi-directional, supports HL7 protocol

Results

Absorbance and results are reviewable by software

Printer

External optional

Power Consumption

400 Watt

Power Supply

AC220V±10% 50/60Hz; 110V±10% 60Hz

Operating Temperature

10 to 30℃

Humidity

30% to 80%

External Dimension

1235×705×875 mm

Dimension

1380×860×1435 mm

Net Weight

146 kg

Gross Weight

220 kg

Performance

Features & Benefits

Automated pipetting system
Dual aspirating and dispensing probes
Advanced reagent management
Efficient microplate washing
Integrated microplate reader
Precise incubation and temperature control
User-friendly software

Laboratory Uses

Applications

Microplate Reader and Washer LT-MRW102 is designed for high-throughput immunoassay processing, including precise pipetting, reagent dispensing, washing, incubation, and absorbance measurement, ensuring accurate and efficient diagnostic testing in clinical and research laboratories.
