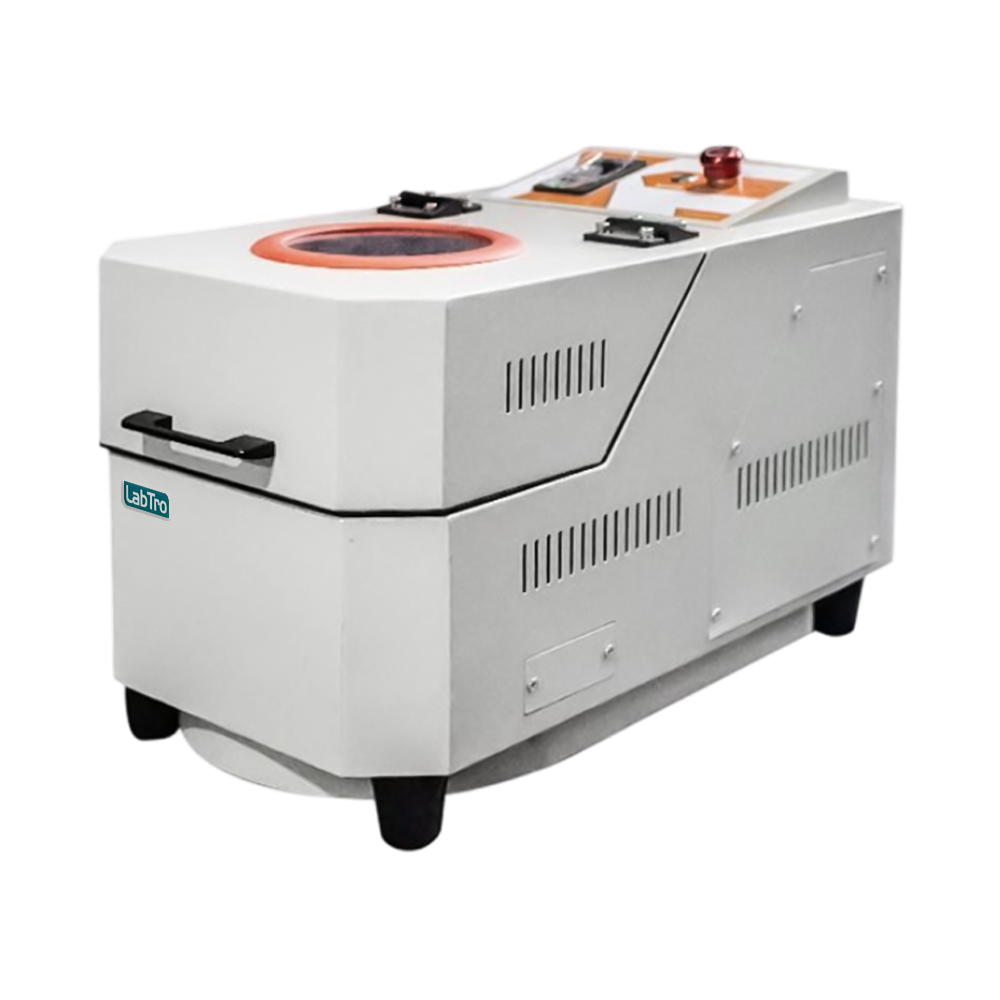

Planetary Ball Mill LT-PBM101

Name: Planetary Ball Mill LT-PBM101
Brand: Labtro Scientific
SKU: LT-PBM101
Price: 3220.00 USD
Availability: InStock
Rating: 5 (704 reviews)

Product Code: LT-PBM101

Labtro Planetary Ball Mill LT-PBM101 delivers a 0.1-micron final particle size, streamlining laboratory milling by converting solid materials into fine, uniform powders. Samples are placed in grinding jars, milling parameters are set, and the grinding cycle is initiated to achieve controlled particle reduction. Processed material is then recovered for the next stage of laboratory work. Suitable for routine sample preparation, powder processing, and batch handling with an organized workflow from loading to sample collection.

Key Features

High-Energy Grinding Performance

Uniform Particle Size Reduction

Multi-Sample Processing Capability

Flexible Dry and Wet Milling Operation

Programmable Milling Control

Compact Laboratory Workflow Design

$ 3,220.00

Qty:

Catalog

Need technical specifications, pricing or application assistance? Contact our product specialists.

Technical Data

Product Specifications

Product Type

Laboratory Planetary Ball Mill

Capacity

0.4 L

Jar Capacity

100 ml × 4

Final Particle Size

0.1 μm (100 nm)

Revolution Speed

0 – 400 rpm

Rotation Speed

0 – 800 rpm

Speed Ratio

2:1

Grinding Modes

Dry, Wet, Vacuum, High-Energy, Low-Temperature

Transmission Type

Gear Drive

Speed Control

Frequency Conversion

Control System

Frequency Conversion Control

Feed Size

<15 mm

Hard Material Feed Size

<3 mm

Ball-to-Material Ratio

2:1 – 10:1

Operation Mode

Intermittent

Multi-Section Speed Setting

7 Sections

Programmable Run Time

0 – 9999 h

Continuous Working Time

100 h

Rated Power

750 W

Power Supply

220 V, 50 Hz

Dimensions (W × D × H)

48 × 28 × 33 cm

Package Dimensions

48 × 58 × 55 cm

Net Weight

30 kg

Gross Weight

55 kg

Performance

Features & Benefits

High-Energy Grinding Performance
Uniform Particle Size Reduction
Multi-Sample Processing Capability
Flexible Dry and Wet Milling Operation
Programmable Milling Control
Compact Laboratory Workflow Design

Laboratory Uses

Applications

Sample Grinding: Prepare uniform powders

Size Reduction: Convert materials into fine particles.

Powder Mixing: Create consistent sample blends.

Nano Milling: Produce ultra-fine powder batches.

Material Alloying: Process and refine mixed materials.

Batch Processing: Mill multiple samples in one cycle.
