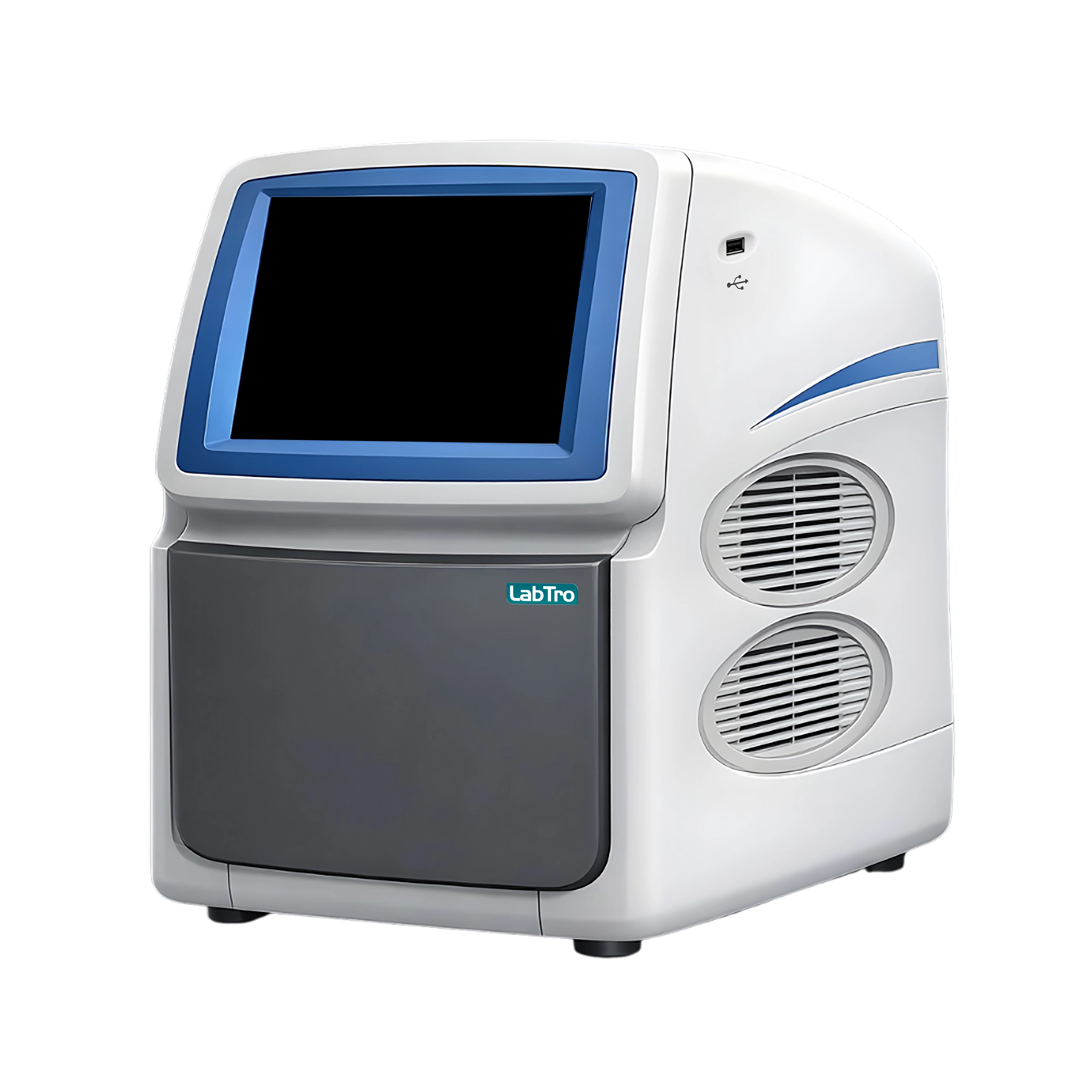

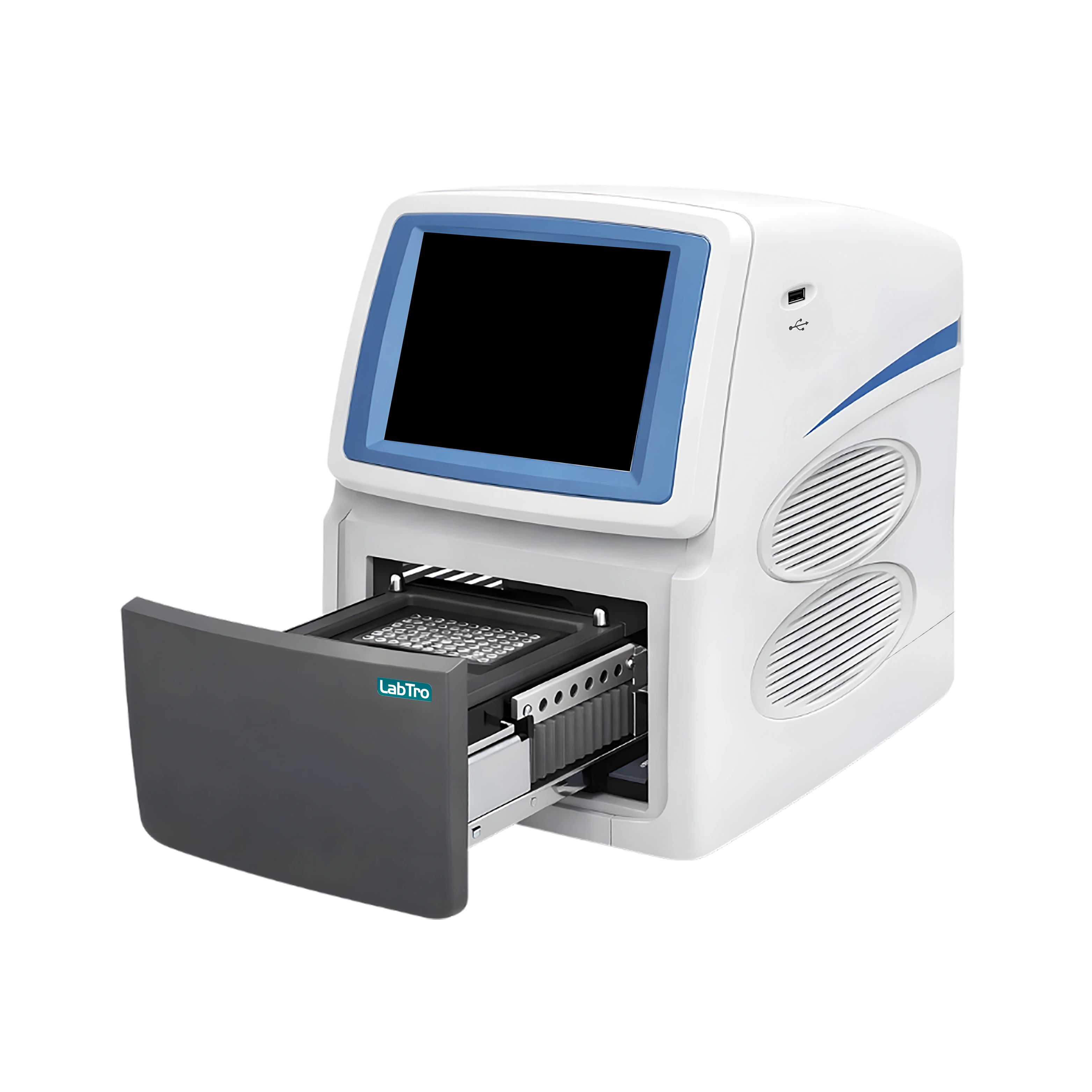

Real Time PCR LT-RTP101

Name: Real Time PCR LT-RTP101
Brand: Labtro Scientific
SKU: LT-RTP101
Price: 22000.00 USD
Availability: InStock
Rating: 5 (637 reviews)

Product Code: LT-RTP101

Real Time PCR LT-RTP101 offers a throughput of 1 to 96 wells for flexible testing needs. It has four independent fluorescence channels to detect multiple targets in one run. Built-in LED light source provides stable illumination during operation. Equipped with precise temperature control and uniform heat distribution, it ensures consistent performance. Our PCR system delivers reliable, reproducible, and efficient real-time analysis.

Key Features

Auto recovery after power loss

Advanced analysis software

Easy data storage & transfer

Multiple control options

Peltier heating & cooling system

$ 22,000.00

Qty:

Catalog

Need technical specifications, pricing or application assistance? Contact our product specialists.

Technical Data

Product Specifications

Throughput

1 to 96

Fluorescence Channels

Fluorescence Scanning Time

Suitable Consumables

0.2 ml 96-well plates, 8-tube strips, single tubes (clear, frosted, white)

Light Source

High-brightness, long-life, and maintenance-free LED light source, excitation from the top

Detector

Photodiode (PD), top scanning

Excitation Range

CH1: 465nm, CH2: 527nm, CH3: 580nm, CH4: 632nm, CH5: 680nm, CH6: 465nm

Detection Range

CH1: 510nm, CH2: 563nm, CH3: 616nm, CH4: 664nm, CH5: 730nm, CH6: 616nm

Fluorescence Dynamic Range

Adjustable

Sample Dynamic Range

From 101 to 1010 copies

Heating Method

Peltier

Max Heating Rate

≥6.1°C/s

Max Cooling Rate

≥5.0°C/s

Uniformity of Thermo Control

±0.1°C

Accuracy of Thermo Control

≤0.1°C

Gradient Interval Range

1°C to 40°C

Gradient Block

12 row

Special Temperature Protocol

Thermal gradients PCR, Long PCR, Touch Down PCR

Sample Testing Linearity & Repeatability

Linear Correlation: r >0.999; Repeatability: cycle threshold (Ct) value CV <0.5%

Control Modes

Mode 1: 10.4-inch touch screen; Mode 2: PC direct control

Power Failure Protection

Auto-start experiments after power recovery, no need to wait for PC software

Data Storage & Transmission

Upload/download via USB disk, 1000 results stored in machine

Reporting Function

Templates reserved; customized experiment report

Key Applications

Relative quantification, absolute quantification, melting curve analysis, SNP analysis

Operating System for PC

Windows 7, Windows 10

Power Consumption

900VA

Power Supply

AC 100 to 240V, 50 to 60Hz

Dimension

355 × 475 × 484 mm

Net Weight

30 kg

Performance

Features & Benefits

Auto recovery after power loss
Advanced analysis software
Easy data storage & transfer
Multiple control options
Peltier heating & cooling system

Laboratory Uses

Applications

Real Time PCR LT-RTP101 enables fast and precise detection, quantification, and analysis of DNA and RNA, supporting applications in disease diagnosis, gene expression studies, pathogen identification, and genetic variation research.
