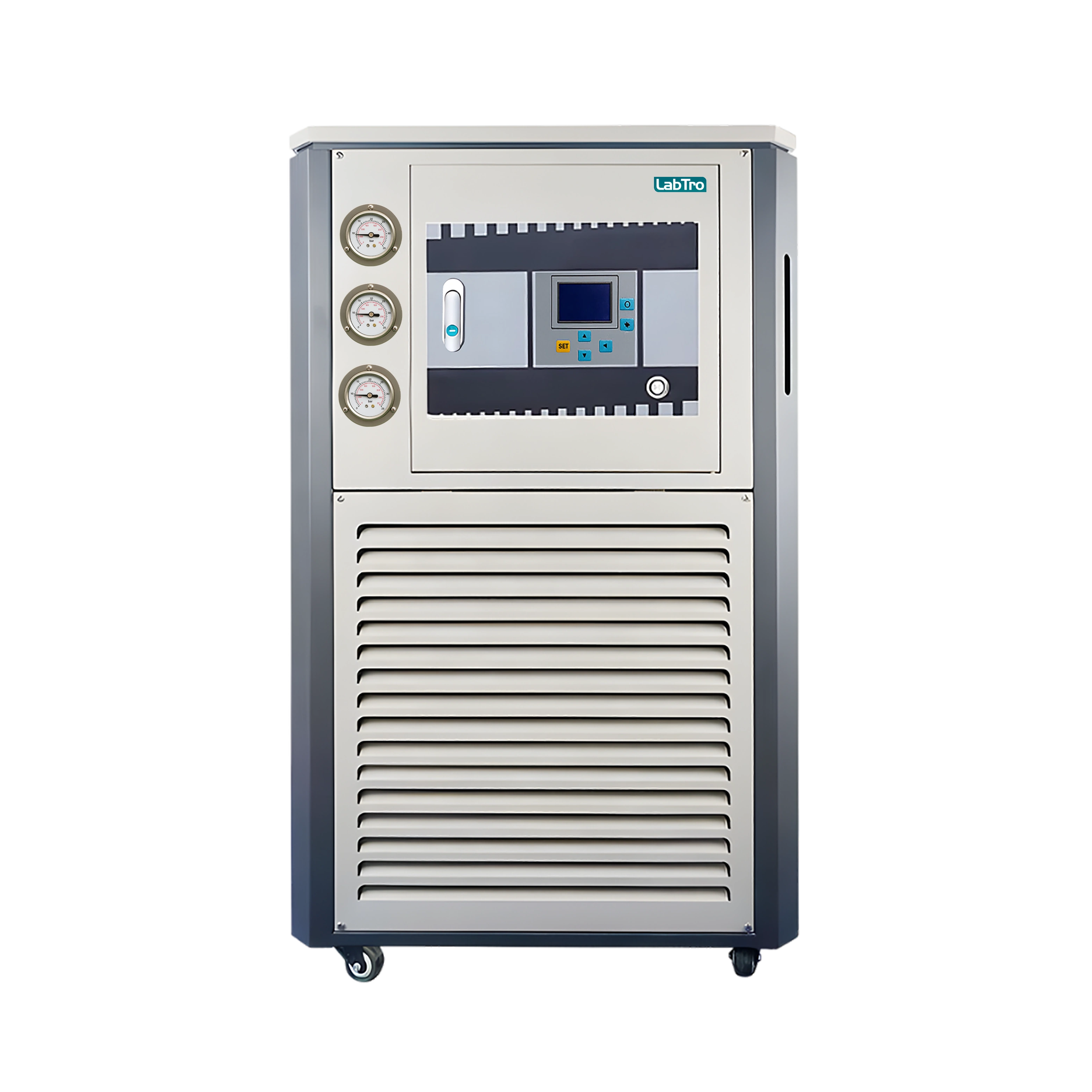

Recirculating Chiller LT-RCC201

Recirculating Chiller LT-RCC201 is a high-efficiency chiller system designed for rapid and reliable cooling. It is engineered with a sealed expansion tank that keeps the heat transfer fluid from absorbing moisture or evaporating. Equipped with multiple safety features ensuring safe operation. Incorporated with eco-friendly refrigerants that have zero ozone depletion potential. Our Recirculating Chiller is suitable for precise cooling in laboratories, research facilities, and industrial processes.

Catalog

Qty:

$ 4,279.00

Specifications

Temperature Range RT to 40℃
Ambient Temperature ≤30 ℃
Accuracy ±0.5℃
Optimum Ambient Humidity 60%
Temperature Sensor PT100
Chiller Type Air cooling (Water cooling)
Safety Protection Safety Protection
Phase Number 1
Cooling Capacity 2800 W
Rated Cooling Power 2500 W
Compressor Power 550 W
Refrigerant Type 1
Outer Circulation Nozzle Size (DN) 10
Distiller Quantity 1
Opening Diameter 240 mm
Tank Volume 15 L
Circulating Pump Type Shielding Pump
Pump Power 100 W
Rated Lift 6 M
Rated Flow 25 L/min
Fan Type External Rotor Axial Fake
Number of Fans 1
Control System Siemens S7-200 Smart PLC
Programming 5 Programs
Operation Panel 7–inch Siemens Color Touch Screen
Data Output USB (TXT Format Support)
Reset Function Available
Power Consumption 1300 Watt
Power Supply 220V, 50/60Hz, 1P
Packing Size (L × W × H) 670 × 600 × 990 mm
Net Weight 45 Kg
Gross Weight 62 Kg

Features

  • Space-efficient design
  • Explosion-proof features to ensure secure operation
  • Rust-resistant outer shell
  • Built-in pressure gauge
  • Air or water cooling options

Application

  • Recirculating Chiller LT-RCC201 is suitable for chemical, biological, and physical experimental testing in pharmaceutical hygiene, food hygiene, chemical industry, colleges, or research laboratories.
