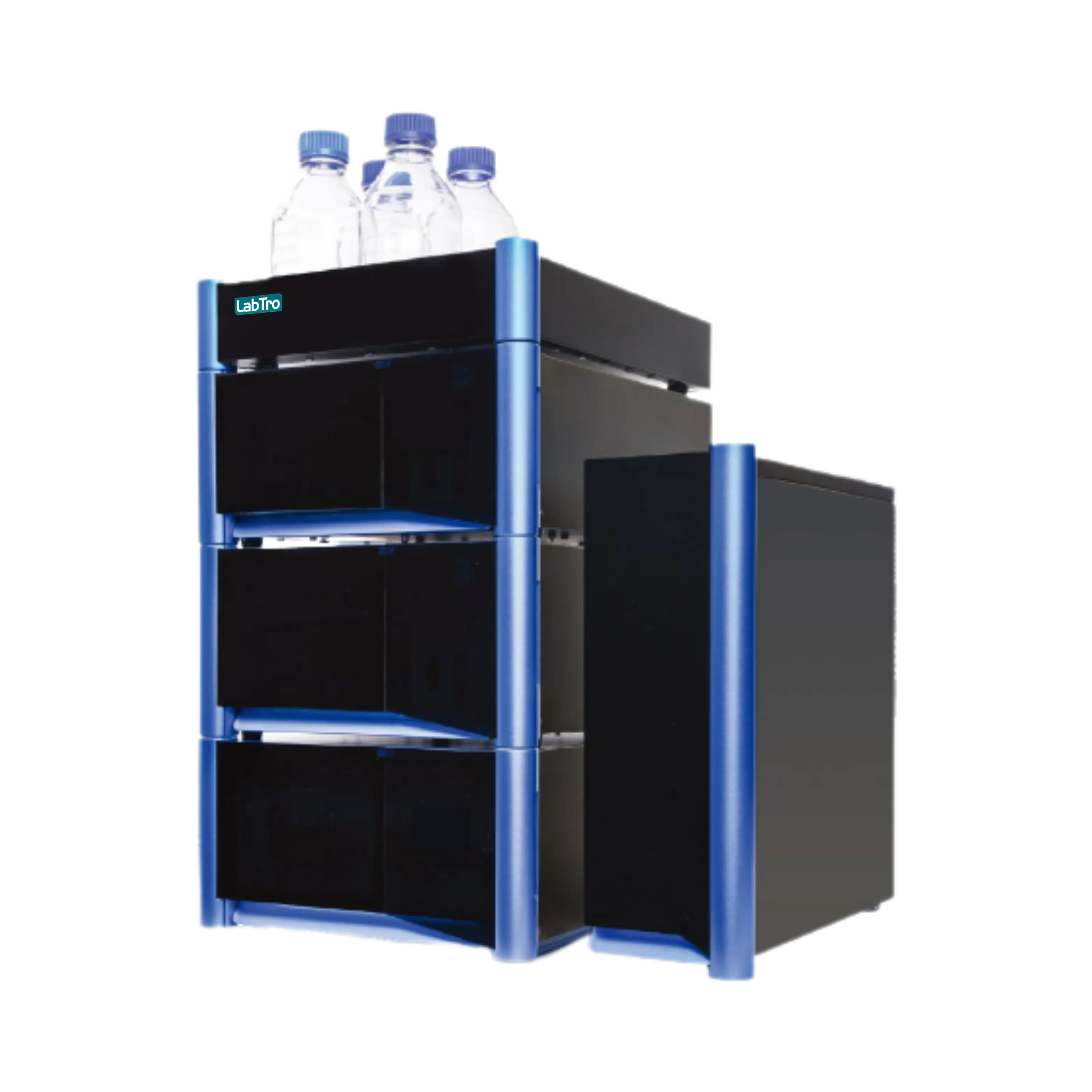

Analytical HPLC System LT-AHS103

Name: Analytical HPLC System LT-AHS103
Brand: Labtro Scientific
SKU: LT-AHS103
Price: 36850.00 USD
Availability: InStock
Rating: 4.8 (991 reviews)

Product Code: LT-AHS103

Labtro Analytical HPLC System LT-AHS103 operates with 70 MPa maximum pressure keeps sample analysis moving from injection through compound separation and detector response in one continuous process. Organized solvent delivery maintains a steady analytical sequence while generated chromatograms support result verification and record keeping. Continuous sample processing improves laboratory throughput with clear, repeatable analytical data for routine testing.

Key Features

Binary high-pressure solvent delivery

Stable gradient flow control

Precise flow regulation

Continuous laboratory operation

Integrated chromatography communication

Modular HPLC configuration

$ 36,850.00

Qty:

Catalog

Need technical specifications, pricing or application assistance? Contact our product specialists.

Technical Data

Product Specifications

Pump Type

Binary high-pressure constant flow pump

Pump Flow Range

0.001 to 10.000 mL/min

Pump Flow Accuracy

≤ ±0.2%

Pump Flow Stability

RSD ≤ 0.06%

Pump Maximum Pressure

70 MPa

Pump Pressure Display Error

±0.3 MPa

Pump Pressure Pulsation

≤ 0.1 MPa

Pump Gradient Mixing Accuracy

≤ ±0.5%

Pump Gradient Composition Accuracy

≤ 0.1% RSD

Pump Gradient Composition Range

0 to 100%

Pump Communication

UDP

Pump Power Consumption

300 W

Pump Power Supply

AC 110–220 V, 50–60 Hz

Pump Dimension

450 × 350 × 180 mm

Pump Weight

18 kg

Autosampler Type

Automatic liquid sampler

Autosampler Injection Range

0–100 μL (Standard), 1–2000 μL (Optional)

Autosampler Injection Speed

≤10 s

Autosampler Sample Residue

<0.002%

Autosampler Injection Repeatability

RSD <0.2%

Autosampler Capacity

120 × 2 mL or 210 × 1 mL vials

Autosampler Maximum Pressure

45 MPa

Autosampler Power Consumption

30 W

Autosampler Power Supply

AC 110–220 V, 50–60 Hz

Autosampler Dimension

440 × 378 × 180 mm

Autosampler Weight

13 kg

UV Detector Type

UV-Visible detector

Detector Wavelength Range

190 to 800 nm

Detector Wavelength Accuracy

±1.0 nm

Detector Wavelength Repeatability

≤ ±0.1 nm

Detector Spectral Bandwidth

8 nm

Detector Noise

≤ ±0.25 × 10⁻⁵ AU

Drift

≤0.5 × 10⁻⁴ AU/h

Detector Linearity

≥2.5 AU

Minimum Detectable Concentration

1 × 10⁻⁹ g/mL

Light Source

Deuterium and Tungsten lamps

Detector Maximum Pressure

1500 psi

Detector Sampling Frequency

5–80 Hz

Detector Time Constant

0.1–5.0 s

Detector Power Consumption

100 W

Detector Power Supply

AC 110–220 V, 50–60 Hz

Detector Dimension

440 × 378 × 160 mm

Weight

10 kg

Diode Array Detector Type

Diode Array Detector (DAD)

Array Elements

512

Wavelength Range

190 to 800 nm

Spectral Resolution

2.4 nm

Array Resolution

1.2 nm

Wavelength Accuracy

±1.0 nm

Dynamic Noise

≤ ±1.0 × 10⁻⁵ AU

Baseline Drift

1.0 × 10⁻⁴ AU/h

Linearity

≥2.0 AU

Lamp

Deuterium lamp

Detection Pool

10 mm, 11 μL

Maximum Pressure

1000 psi

Power Supply

AC 110–220 V, 50–60 Hz

Column Oven Type

Column oven

Temperature Range

Ambient +5°C to 99°C

Temperature Accuracy

±0.1°C

Temperature Precision

≤0.1°C

Communication

RS485 / UDP

Power Consumption

110 W

Oven Power Supply

AC 220 V ±10%, 50 Hz

Dimension

120 × 65 × 570 mm

Oven Weight

4.2 kg

Performance

Features & Benefits

Binary high-pressure solvent delivery
Stable gradient flow control
Precise flow regulation
Continuous laboratory operation
Integrated chromatography communication
Modular HPLC configuration

Laboratory Uses

Applications

Solvent Delivery: Maintains stable mobile phase flow.

Gradient Elution: Mixes solvents for separation.

Sample Analysis: Supports consistent analytical runs.

Method Execution: Follows programmed flow conditions.

Column Operation: Delivers steady pressure to the column.

Routine Processing: Maintains continuous sample sequences.
