X-ray Fluorescence Spectrometer LT-XRF101

Name: X-ray Fluorescence Spectrometer LT-XRF101
Brand: Labtro Scientific
SKU: LT-XRF101
Price: 43780.00 USD
Availability: InStock
Rating: 4.8 (765 reviews)

Product Code: LT-XRF101

X-ray Fluorescence Spectrometer LT-XRF101 offers an elemental analysis range from Fluorine (F) to Uranium (U). It is equipped with a large-area graphene ultra-thin window, electrically cooled semiconductor SDD detector. It features AI-based sample recognition, ensuring fast and accurate detection with a fully matched analysis mode that completes sample detection in a single action. Controlled by a Siemens PLC, the instrument supports 9-sample, 12-sample, and 20-sample chamber configurations. The software enables seamless dual-gas path switching, overcoming the limitations of conventional XRF systems in measuring light elements in liquids.

Key Features

Energy-Dispersive

Dual-gas Path Switching

High Resolution

Suitable for RoHS/ELV compliance

Auto sample loading

Intelligent automatic detection

Siemens PLC control

$ 43,780.00

Qty:

Catalog

Need technical specifications, pricing or application assistance? Contact our product specialists.

Technical Data

Product Specifications

Elemental Analysis

Fluorine (F) to Uranium (U)

Analytical Range

99.99%

Analytical Accuracy

<0.05%

RSD value

>96%

Analytical Detection

0.2 ppm (for light matrices)

Detector Energy Resolution

SDD detector, ≤129eV

Temperature Range

15°C to 30°C

Excitation Source

Tube voltage 5 to 50kV
Tube current 0 to 1000uA

Sample Introduction System

9 sample chambers (with cup rotation)
12 sample chambers + single chamber
20 sample chambers + single chamber (optional)
controlled by PLC

High Voltage Generator

Imported Spellman High Voltage

Testing Atmosphere

Atmospheric, Vacuum, Helium

Matrix Effect Correction Model

Mutually independent

Regression Program

Multivariate nonlinear regression program

Power Supply

AC 220V ± 5V

Sample Chamber Size

Φ340 × 64 (H) mm

Dimension

646 × 578 × 388 mm

Weight

85 Kg

Performance

Features & Benefits

Energy-Dispersive
Dual-gas Path Switching
High Resolution
Suitable for RoHS/ELV compliance
Auto sample loading
Intelligent automatic detection
Siemens PLC control

Laboratory Uses

Applications

X-ray Fluorescence Spectrometer LT-XRF101 is used for analysing harmful elements in RoHS, ELV, toy safety, and footwear leather, as well as environmental, geological, and alloy composition analysis. It also detects precious metals, measures metal coating thickness, and analyses petroleum, chemicals, and building materials.

X-ray Fluorescence Spectrometer LT-XRF101

Product Specifications

Features & Benefits

Applications

Related Products

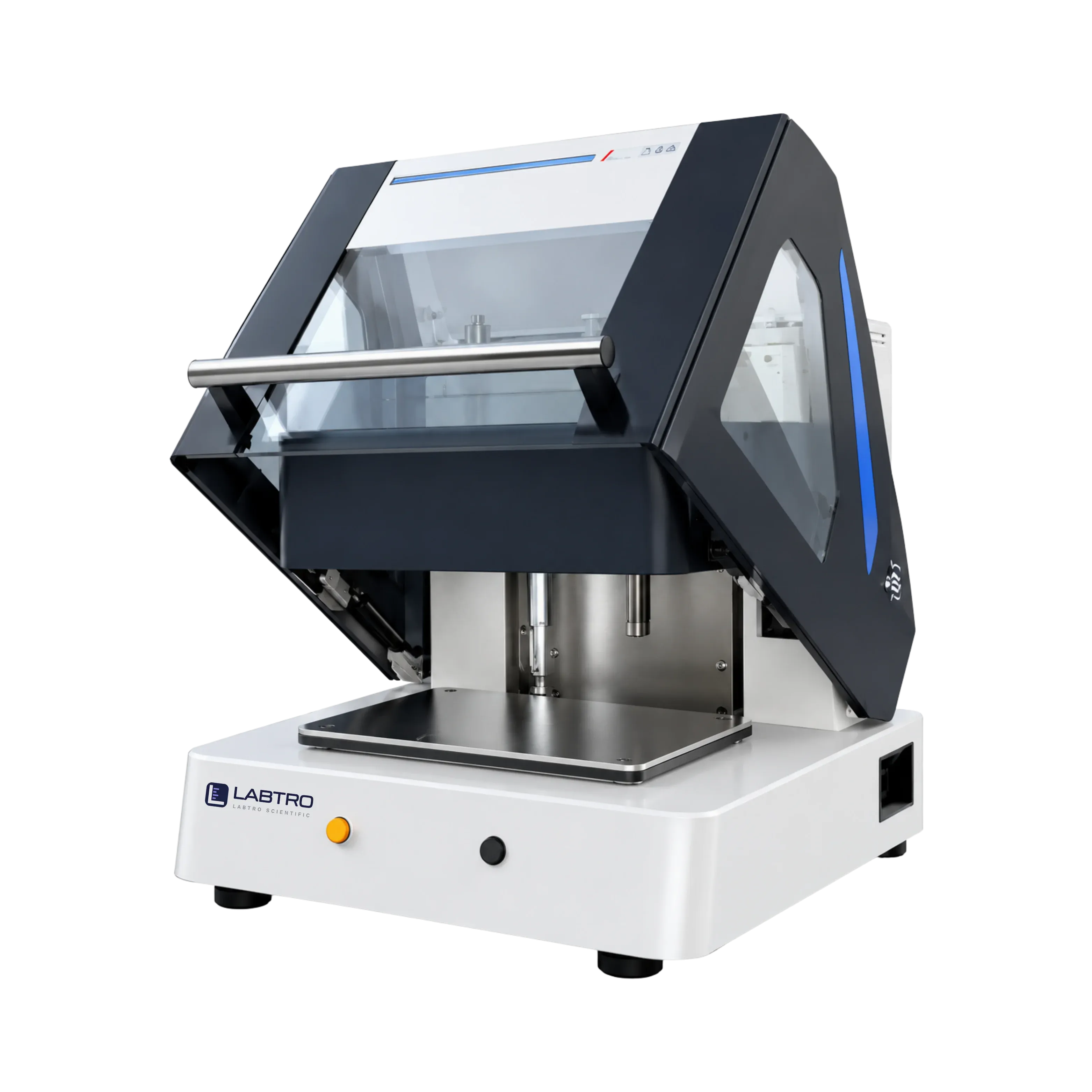

X-ray Fluorescence Spectrometer LT-XRF102
