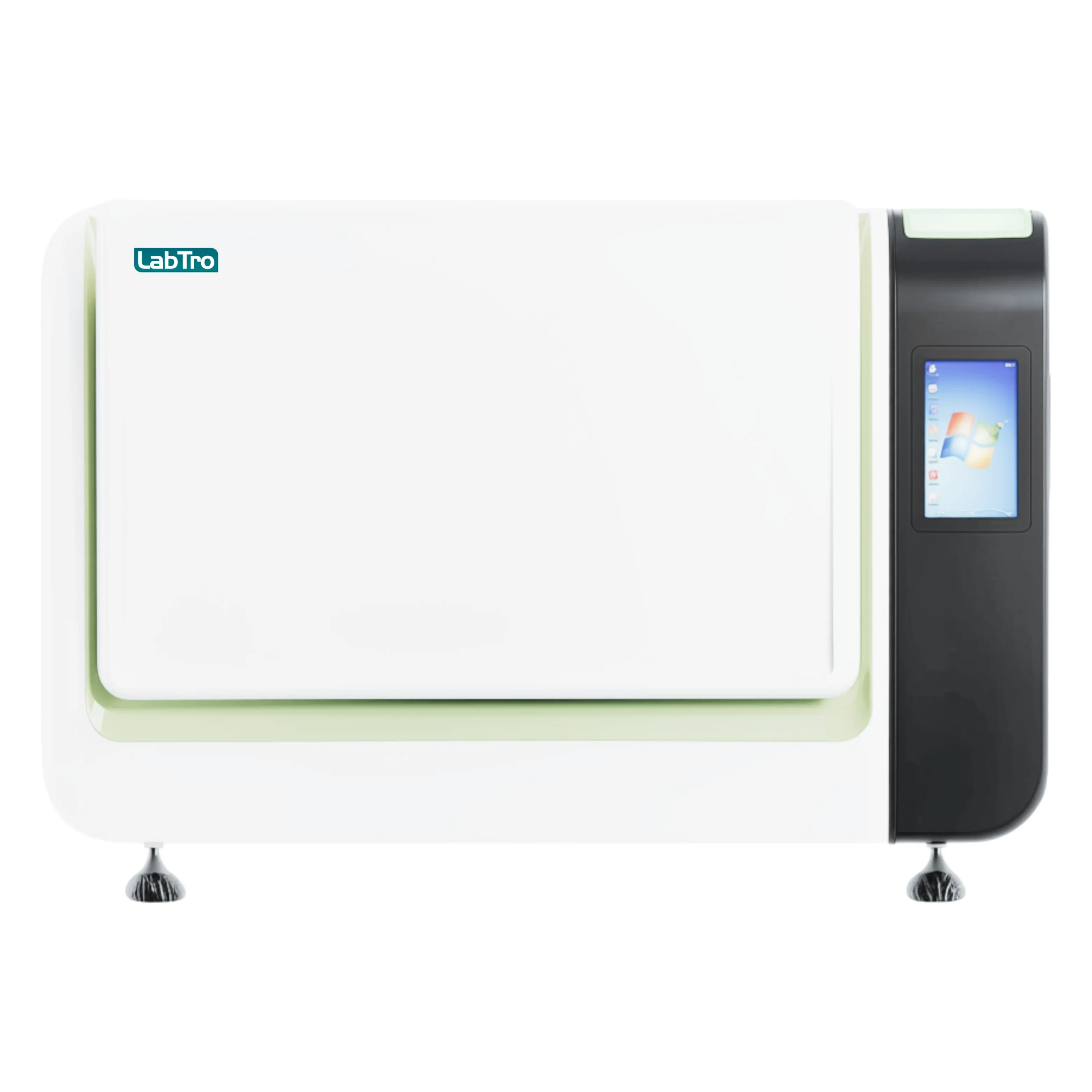

Nucleic Acid Analyzer LT-NAA101

Name: Nucleic Acid Analyzer LT-NAA101
Brand: Labtro Scientific
SKU: LT-NAA101
Price: 29150.00 USD
Availability: InStock
Rating: 5 (800 reviews)

Product Code: LT-NAA101

Labtro Nucleic Acid Analyzer LT-NAA101 is a fully automated molecular diagnostic system designed for nucleic acid extraction, PCR amplification, hybridization, detection, and result analysis. It combines PCR with reverse dot blot hybridization to identify target genetic sequences using microfluidic chip technology. The analyzer incorporates six detection modules and accommodates up to 24 samples per run. Automated reagent handling minimizes manual intervention and eliminates the need for precise pipetting during operation. Integrated temperature control provides heating and cooling rates of at least 1.5°C/s for efficient amplification. The system requires approximately 5 minutes of hands-on preparation, with a total turnaround time of about 3.5 hours. It supports HPV genotyping and detection of Mycobacterium tuberculosis and associated resistance genes. An integrated image detection system evaluates hybridization signals for qualitative interpretation.

Key Features

Six independent detection modules
Processes up to 24 samples per run
Fully automated sample-to-result workflow
Integrated DNA extraction and PCR amplification
Reverse dot blot hybridization detection
Microfluidic chip-based processing
Only about 5 minutes of hands-on preparation
Approximately 3.5-hour total turnaround
Automatic reagent dispensing
No precise manual pipetting required during automated processing
Integrated positive and negative pressure control
Rapid heating and cooling at ≥1.5°C/s
Integrated image detection and analysis
Automated 3D movement platform
Supports multiplex genotype detection
HPV 24-type genotyping
HPV 28-type genotyping
Mycobacterium tuberculosis detection
Associated resistance-gene detection
Image display system
Automated reagent system
Pneumatic gas-path system
Temperature-control system
Image-detection system
3D movable platform
PCR amplification module
Microfluidic chip processing system

$ 29,150.00

Qty:

Catalog

Need technical specifications, pricing or application assistance? Contact our product specialists.

Technical Data

Product Specifications

Detection Principle

PCR and Reverse Dot Blot Hybridization

Detection Modules

6 Modules

Sample Capacity

Up to 24 Samples

Workflow

Sample-to-Answer Automated Genotyping

Sample Preparation

Automated

Nucleic Acid Extraction

Automated DNA Extraction

PCR Amplification

Automated

Hybridization

Automated Reverse Hybridization

Detection Method

Microfluidic Chip-Based Detection

Result Analysis

Automatic Software Analysis

Result Reporting

Automatic, Easy-to-Read Report

Hands-On Time

Approximately 5 min

Total Turnaround Time

Approximately 3.5 hrs

Heating Rate

≥1.5°C/s, from 50°C to 90°C

Cooling Rate

≥1.5°C/s, from 90°C to 50°C

Reagent Handling

Automated Reagent Processing

Fluid Handling

Microfluidic Chip with Integrated Micro-Pumps

Pneumatic Control

Positive and Negative Pressure Control

Temperature Control

Integrated Temperature Control System

Image Detection

Integrated Image Detection System

Movement System

3D Movable Platform

Sample Loading

Direct loading into designated sample position

Test Initiation

Load sample and press start

Sample Type

Exfoliated Cervical Epithelial Cells

HPV Detection

24 / 28 Genotype Panels

Additional Detection

Mycobacterium tuberculosis and resistance genes

Electrical Requirement

230 V, 50 Hz

Rated Power

600 VA

Maximum Operating Altitude

≤2300 m

Dimensions

1000 × 610 × 690 ±10 mm

Weight

80 kg

Performance

Features & Benefits

- Six independent detection modules
- Processes up to 24 samples per run
- Fully automated sample-to-result workflow
- Integrated DNA extraction and PCR amplification
- Reverse dot blot hybridization detection
- Microfluidic chip-based processing
- Only about 5 minutes of hands-on preparation
- Approximately 3.5-hour total turnaround
- Automatic reagent dispensing
- No precise manual pipetting required during automated processing
- Integrated positive and negative pressure control
- Rapid heating and cooling at ≥1.5°C/s
- Integrated image detection and analysis
- Automated 3D movement platform
- Supports multiplex genotype detection
- HPV 24-type genotyping
- HPV 28-type genotyping
- Mycobacterium tuberculosis detection
- Associated resistance-gene detection
- Image display system
- Automated reagent system
- Pneumatic gas-path system
- Temperature-control system
- Image-detection system
- 3D movable platform
- PCR amplification module
- Microfluidic chip processing system

Laboratory Uses

Applications

HPV genotype screening

Molecular diagnostic laboratories

Cervical screening programs

Infectious disease testing

Mycobacterium tuberculosis detection

Drug-resistance gene detection

Clinical nucleic acid analysis

Molecular biology laboratories

Add-ons

Optional Accessories

- External Printer
- HPV 24-Genotyping Microfluidic Chip Kit
- HPV 28-Genotyping Microfluidic Chip Kit
